Label print engine

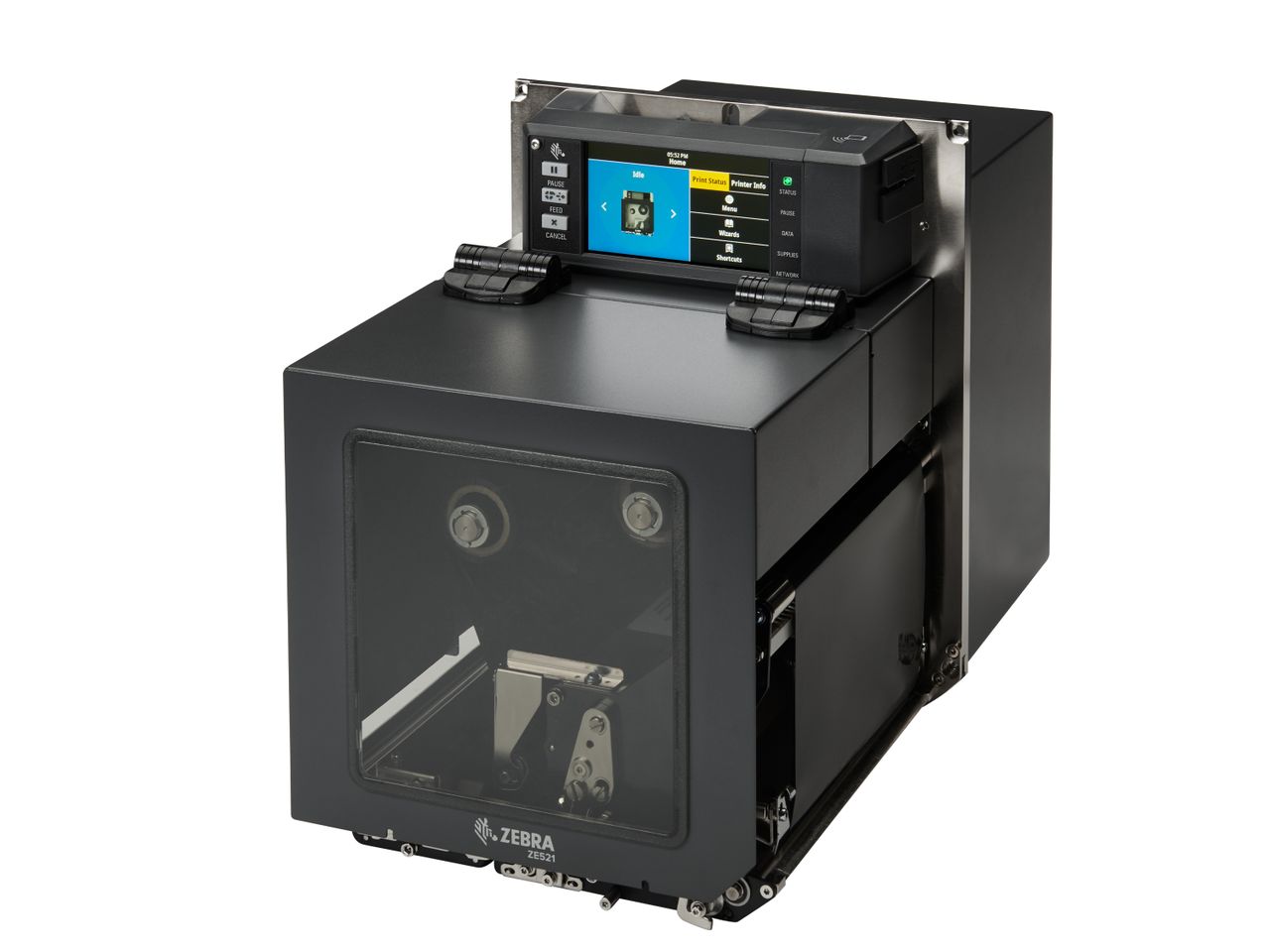

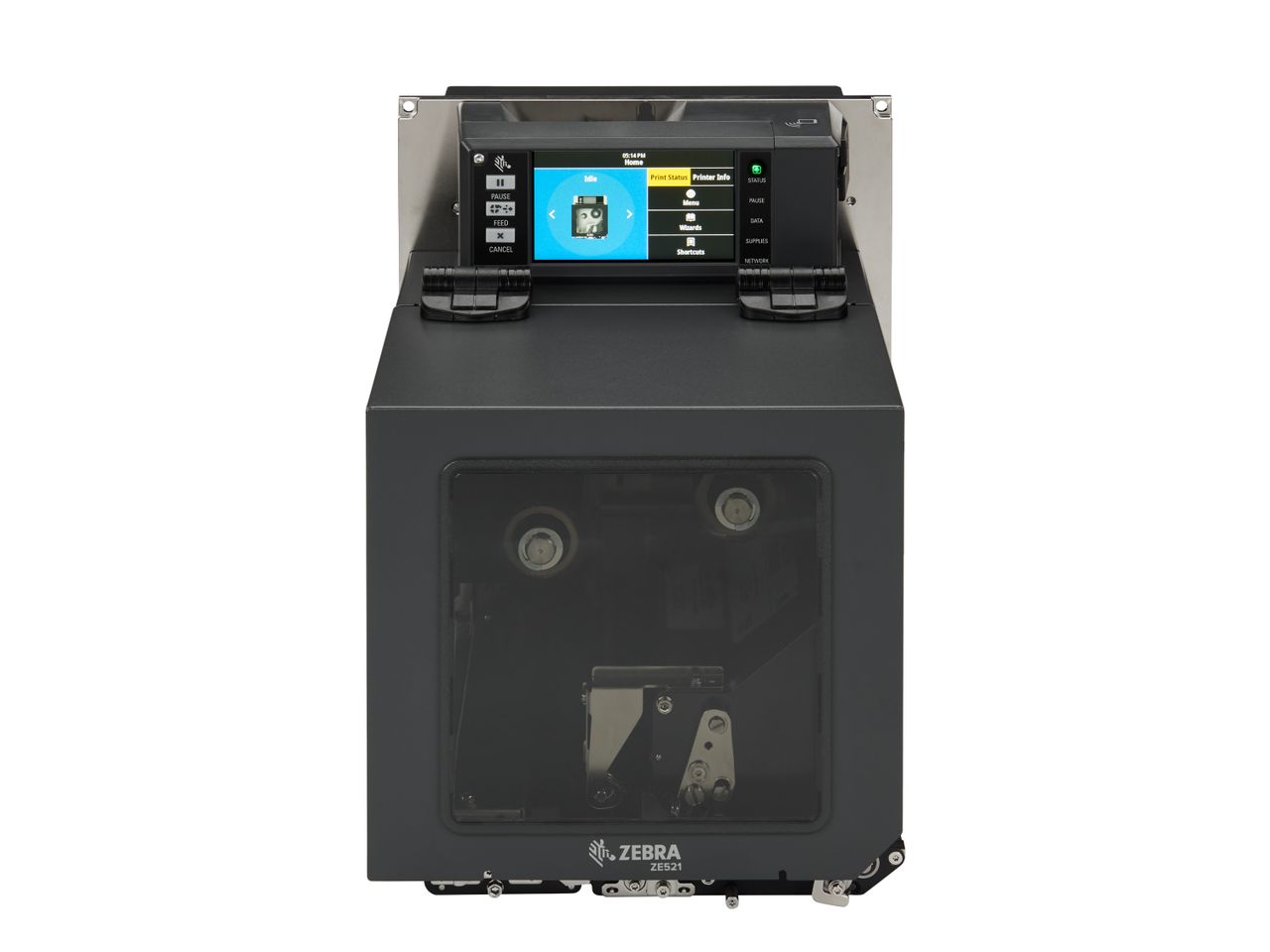

Zebra ZE521

Highest printing performance for industrial applications

High print speed of up to 356 mm/sec
Excellent print quality of up to 600 dpi
6" print module - print width up to 168 mm
Robust design - ideal for 24/7 operation
Simple integration - diverse connectivity options
RFID option available

The Zebra ZE521 sets new standards in industrial labeling and impresses with its first-class print quality, high speed and robust design. With a maximum print speed of up to 356 mm per second and a resolution of up to 600 dpi, it delivers razor-sharp labels for a wide range of applications - from manufacturing to logistics. Thanks to its robust construction, the ZE521 is designed for continuous use, while the intuitive operator interface makes it easy to operate. State-of-the-art connectivity options and the innovative Print DNA software ensure seamless integration, high security and efficient remote maintenance. The ZE521 also offers optional RFID functionality to realise future-proof labeling solutions. Maximise your productivity with the powerful and reliable ZE521 from Zebra.

Work quickly with first-class print speeds of up to 356 mm per second. For high quality and resolution, there is an option for 600 dpi. The new printhead design with holder and quick release eliminates the need for tools for replacement.

The ZE521 6-inch module is extremely robust and durable. The design does not require a fan and the enclosure protects against foreign bodies and water ingress. This makes the modules ideal in dusty environments or where water can splash. The revolutionary Print DNA software suite gives you an innovative edge that grows with your business and is designed for the technology of tomorrow.

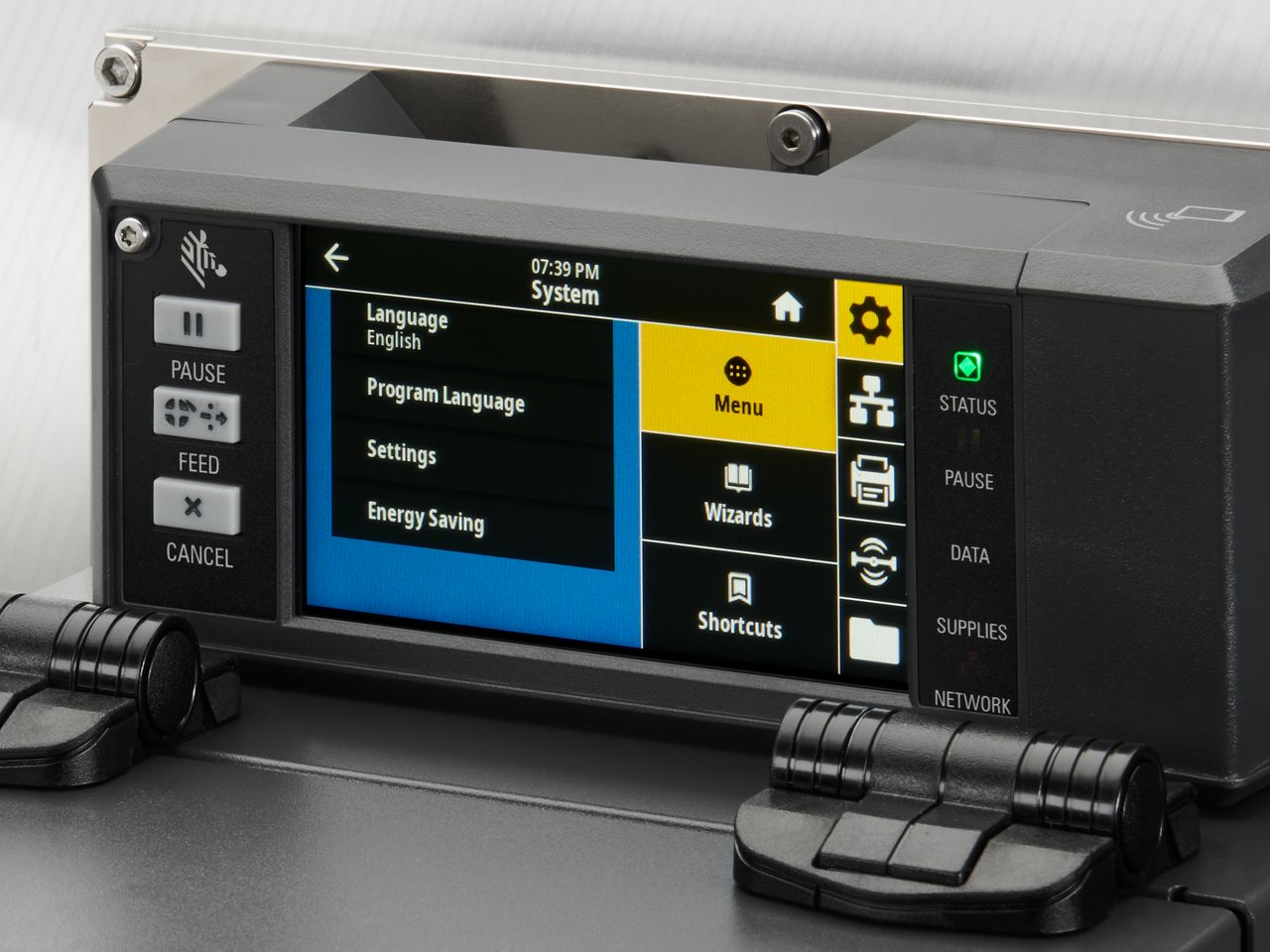

The ZE521 is amazingly easy to integrate and use. Thanks to setup tools, wizards and emulation functions, it can be deployed anywhere. The large colour touchscreen and intuitive operator interface make it easy to set up and operation with minimal training. The printer status can be recognised at a glance, settings can be changed quickly and support is at hand.

With the integrated analysis functions, maintenance work can be predicted and planned to prevent unexpected downtimes. Problems can be resolved remotely and the modular extended life drive is quick and easy to replace for maintenance - just three screws - to avoid disruption.

Technical specifications

Technical values

Print width

168 mm

Print speed up to

356 mm/sec

Printhead resolution

203 dpi, 305 dpi

Printing process

Thermal transfer, Thermal direct, RFID

Label width

76 - 180 mm

Print media

Material width max (labels and liner)

180 mm

Material width min (labels and liner)

76 mm

Maximum material thickness

0.305 mm

Ribbon

Width

70 - 180 mm

Inner core diameter

25 mm

Maximum length

600 linear meters

Winding

Outside (standard) Inside (adjustable)

Features

Display

4.3" colour TFT

Printhead technology

Flathead

Emulations

several

Programming language

ZPL2

ROM / flash memory

512 MB

Flash memory expansion as an option

–

SD memory card slot

–

PDF direct printing

Physical aspects

Dimensions system

300 mm x 245 mm x 379 mm

Weight

14,7 kg

Authorisations

CE

Rel. humidity non-condensing

20 - 95 %

Ambient temperature

0 - 40°C

Supply voltage

90 - 264 V

Frequency

47 - 63 Hz
