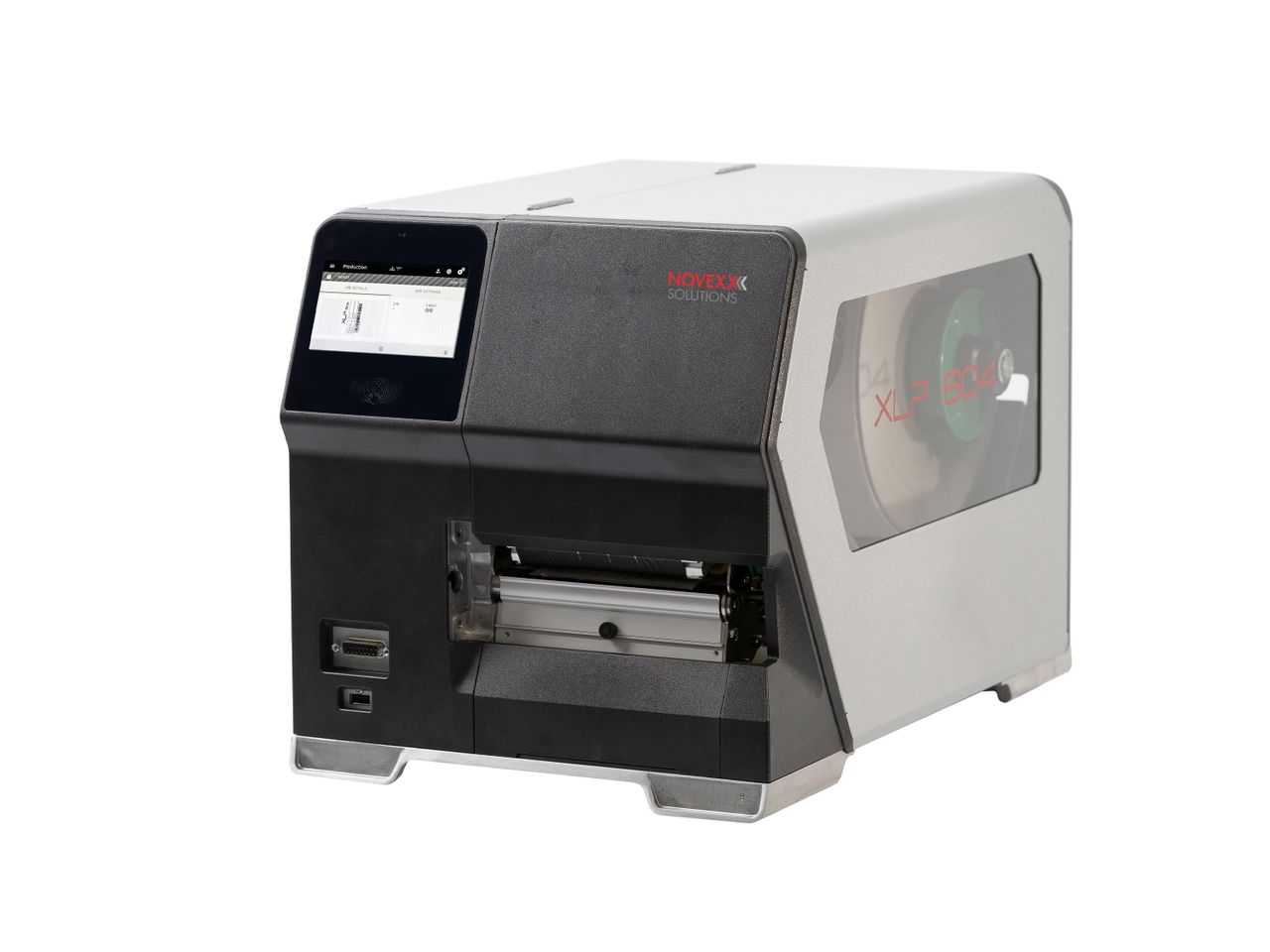

Desktop label printer

Novexx XLP 60x

High-performance printers for any industrial printing challenge

High print speeds up to 400 mm/s
Excellent 300-dpi print quality
Ribbon mandrel for constant ribbon tension
Web interface for remote access via PC, tablet, and smartphone
Configurable interfaces
100% tool-free maintenance

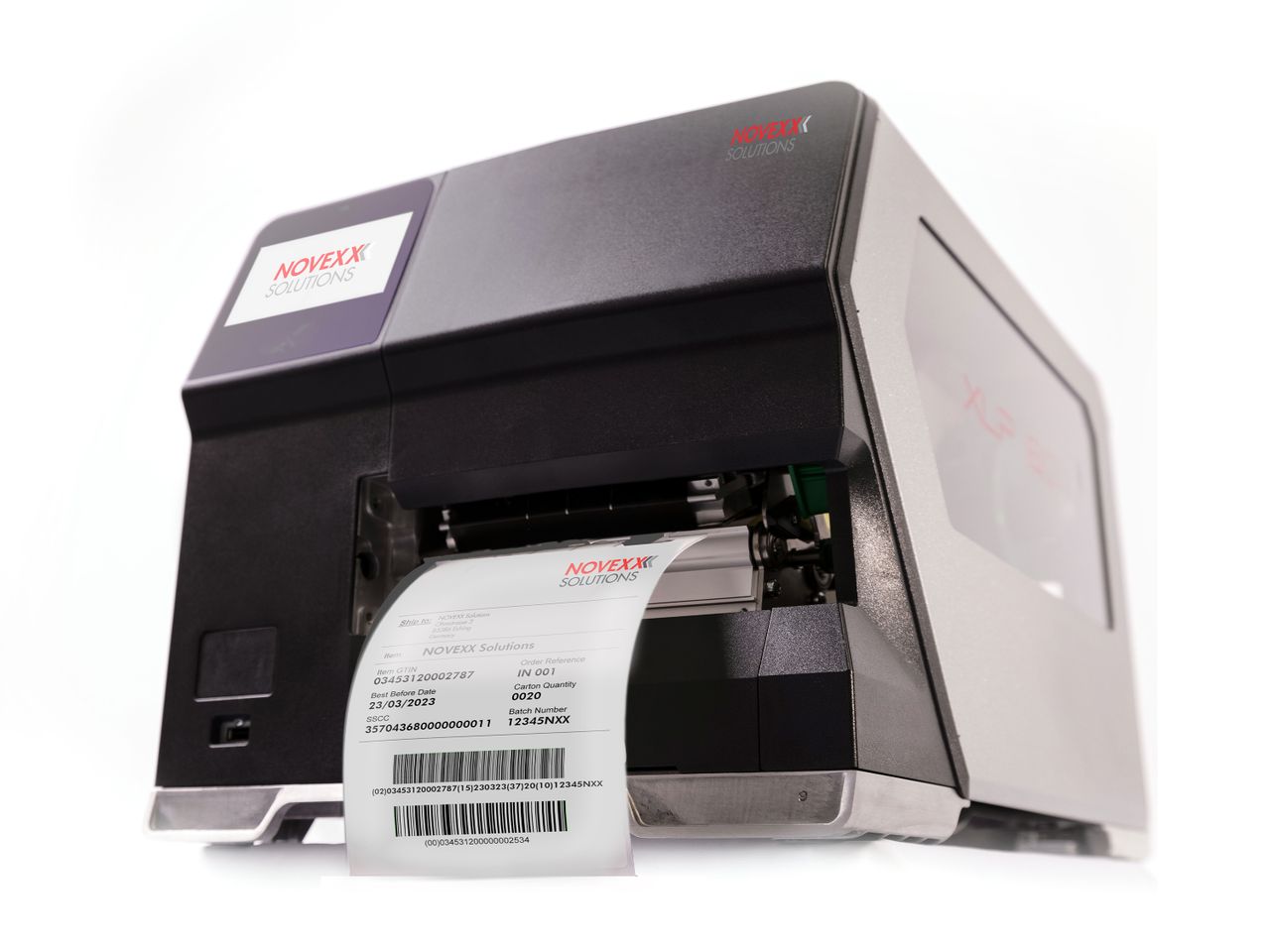

The Novexx Solutions XLP 60x is a powerful industrial label printer specifically designed for demanding applications in production, logistics, and warehousing. With its robust construction and reliable printing technology, the XLP 60x delivers high print quality and speed to efficiently produce large volumes of labels. The device supports a wide variety of label materials and sizes, making it extremely versatile.

Thanks to state-of-the-art thermal transfer or direct thermal printing technology, the printer produces sharp, clear print results that meet even demanding labeling requirements. Intuitive operation and easy maintenance ensure smooth workflows. In addition, the XLP 60x offers extensive interface options to ensure seamless integration into existing production processes and to meet the latest digital requirements.

With its durable construction, it is ideally suited for continuous use in industrial environments. Overall, the Novexx Solutions XLP 60x is the ideal solution for companies that rely on reliable, efficient, and high-quality labeling.

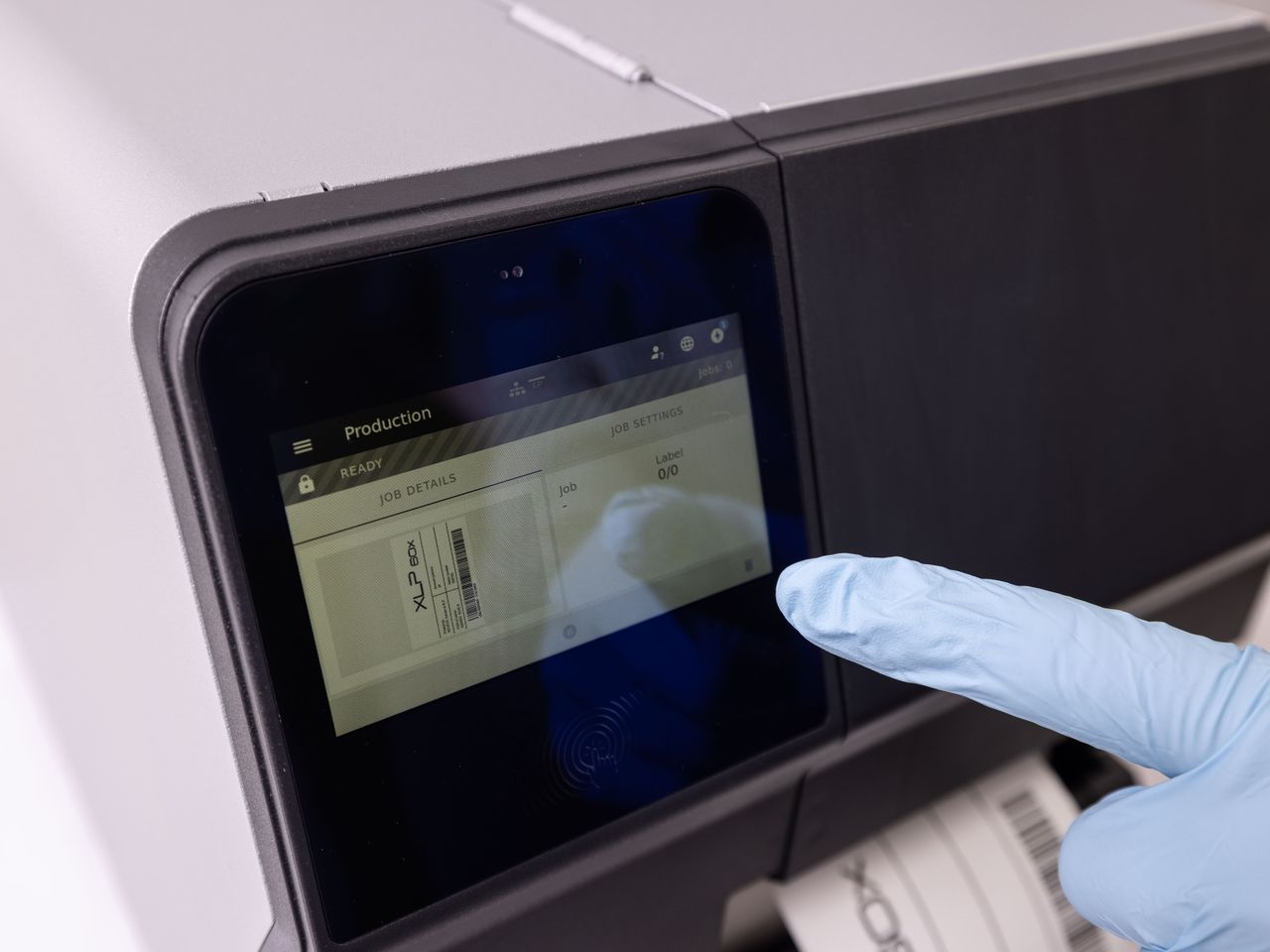

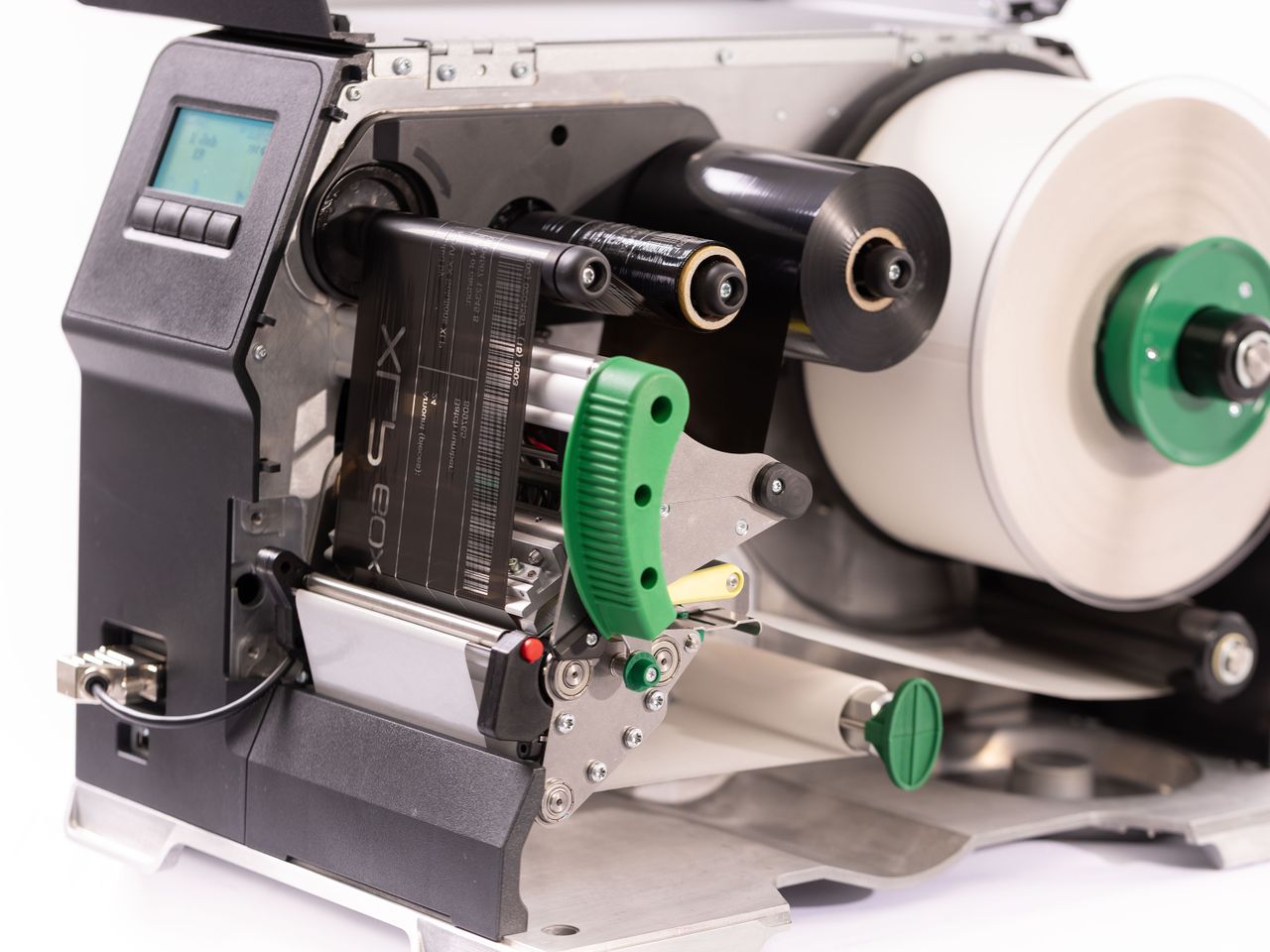

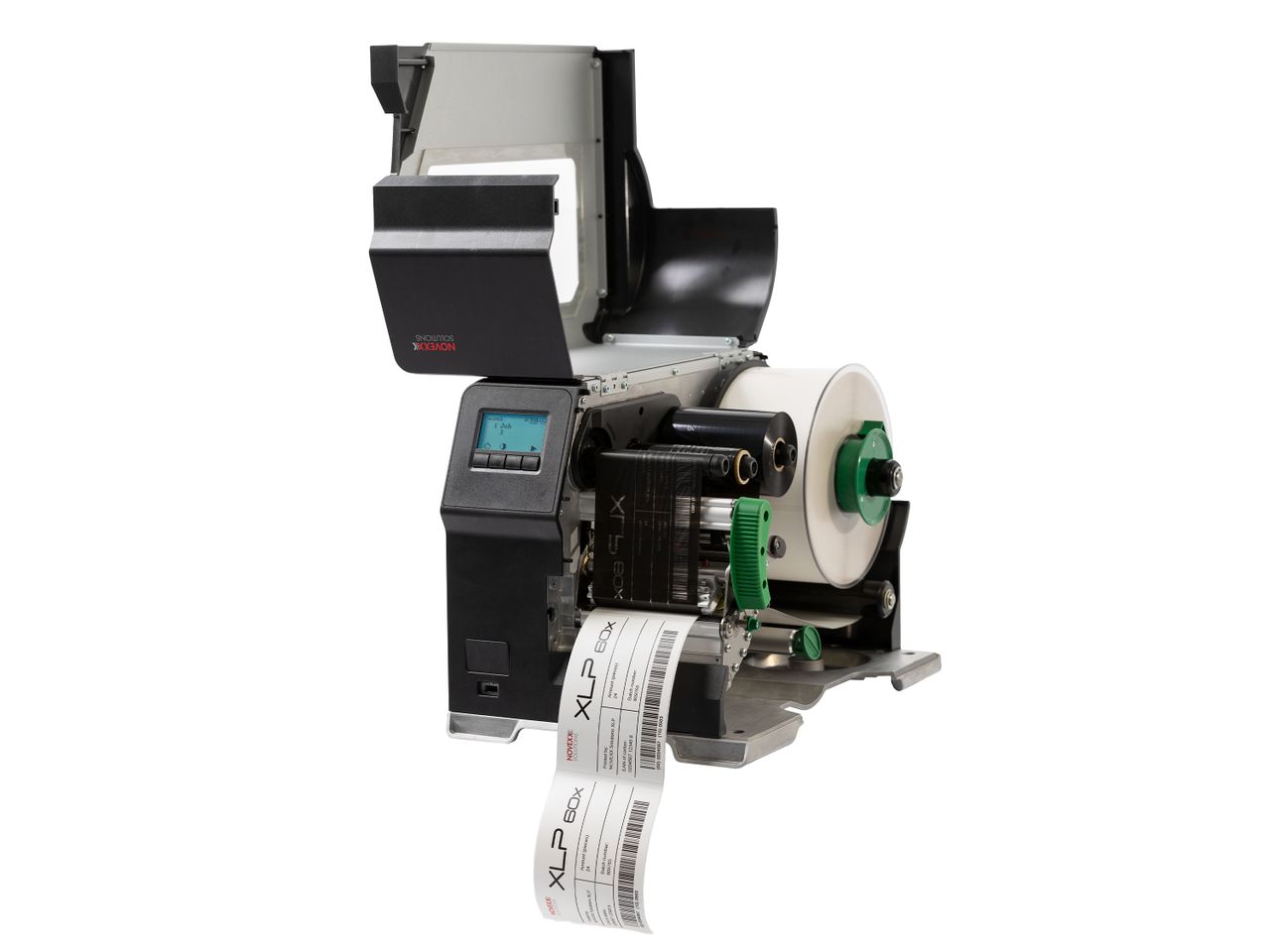

The choice between two different displays with intuitive navigation, fast and convenient switching of label and ribbon materials, and completely tool-free maintenance provide maximum operator comfort. In addition, the open print module makes cleaning extremely easy.

The ribbon save function ensures that only the ribbon required for printing is used. The result is less waste and fewer chemicals, lower costs, and a longer printhead service life. Industrial robustness together with large ribbon capacity ensures maximum uptime and increased productivity.

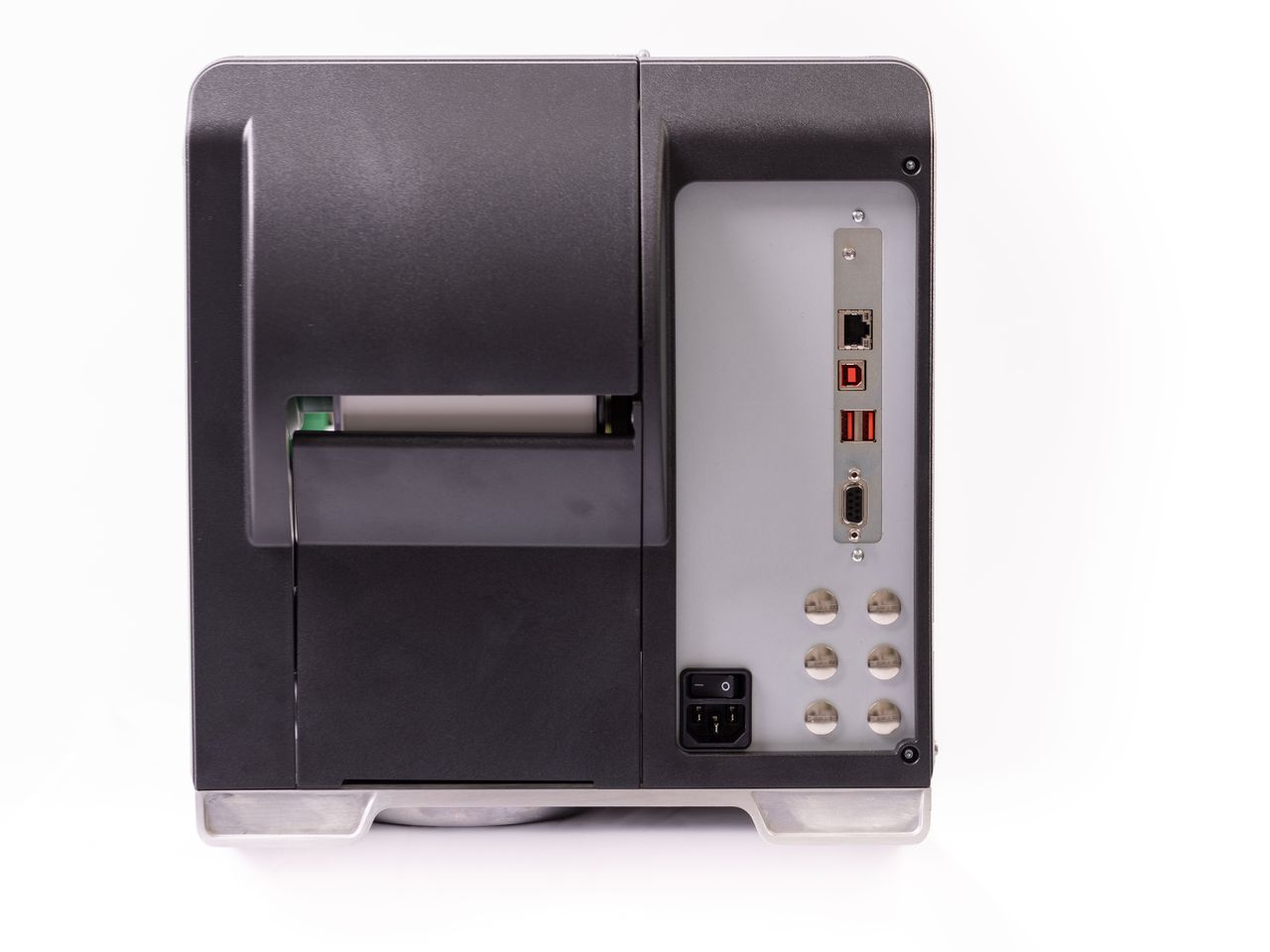

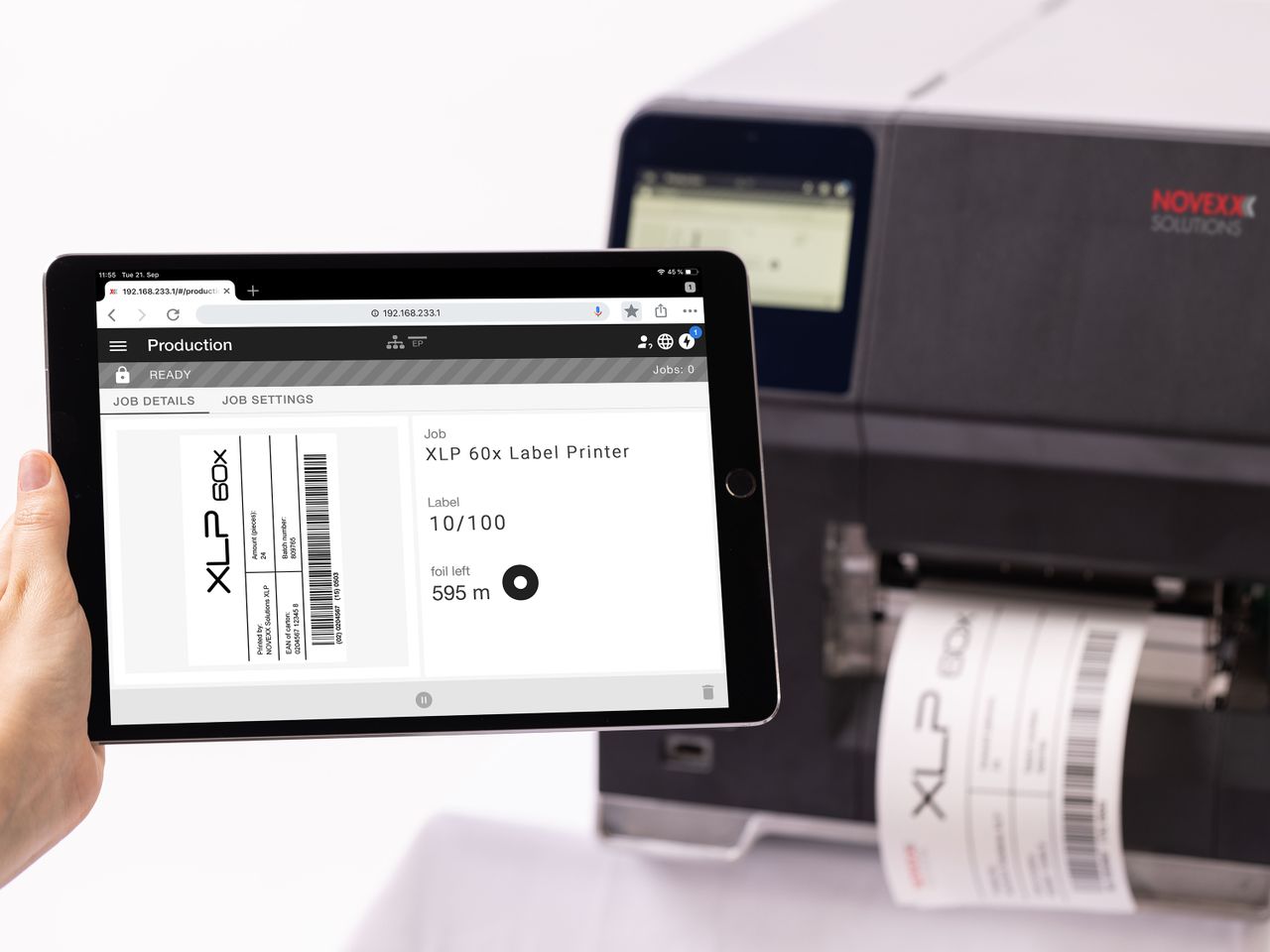

The XLP 60x meets the latest digital requirements: The web interface enables remote access and configuration from any PC or mobile device, such as a smartphone or tablet. Optional I/O boards provide multiple interfaces for any type of automated printing and application tasks.

To meet a wide range of requirements, the XLP 60x can be ordered with a variety of options, including a cutting function, an external rewinder, and a compressed-air-free applicator for semi-automatic labeling of products with sensitive surfaces and varying product heights.

Technical specifications

Features

Flash memory expansion as an option

–

PDF direct printing

Display

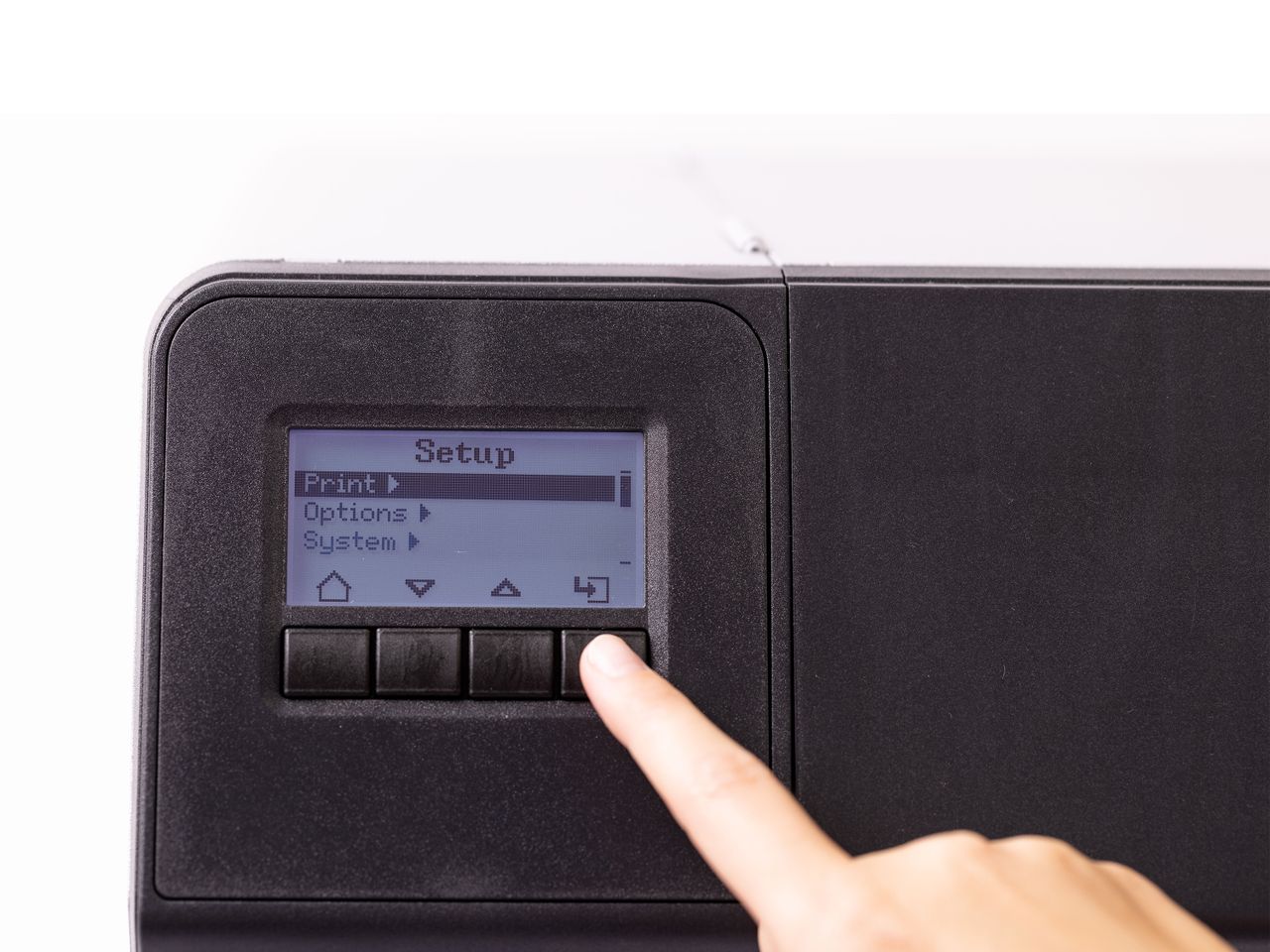

128x64 Dot LCD + RGB backlight Optional 4.3" high-resolution TFT touch display

Printhead technology

Near Edge

Programming language

Easyplug

ROM / flash memory

2 GB pSLC

SD memory card slot

–

Technical values

Printing process

Thermal transfer, Thermal direct

Print width

160 mm

Printhead resolution

300 dpi

Print speed up to

400 mm/sec

Label width

15 - 185 mm

Print media

Material width max (labels and liner)

185 mm

Material width min (labels and liner)

15 mm

Ribbon

Width

25 - 164 mm

Inner core diameter

25.4 mm

Maximum length

600 linear meters

Winding

Inside (standard) Outside (standard)

Physical aspects

Printer dimensions (HxWxL)

330 mm x 377 mm x 496 mm

Weight

19,6 kg

Authorisations

CE

Rel. humidity non-condensing

20 - 85 %

Ambient temperature

5 - 40°C

Frequency

50 - 60 Hz
