Markoprint X1JET XR

Industrial inkjet printer

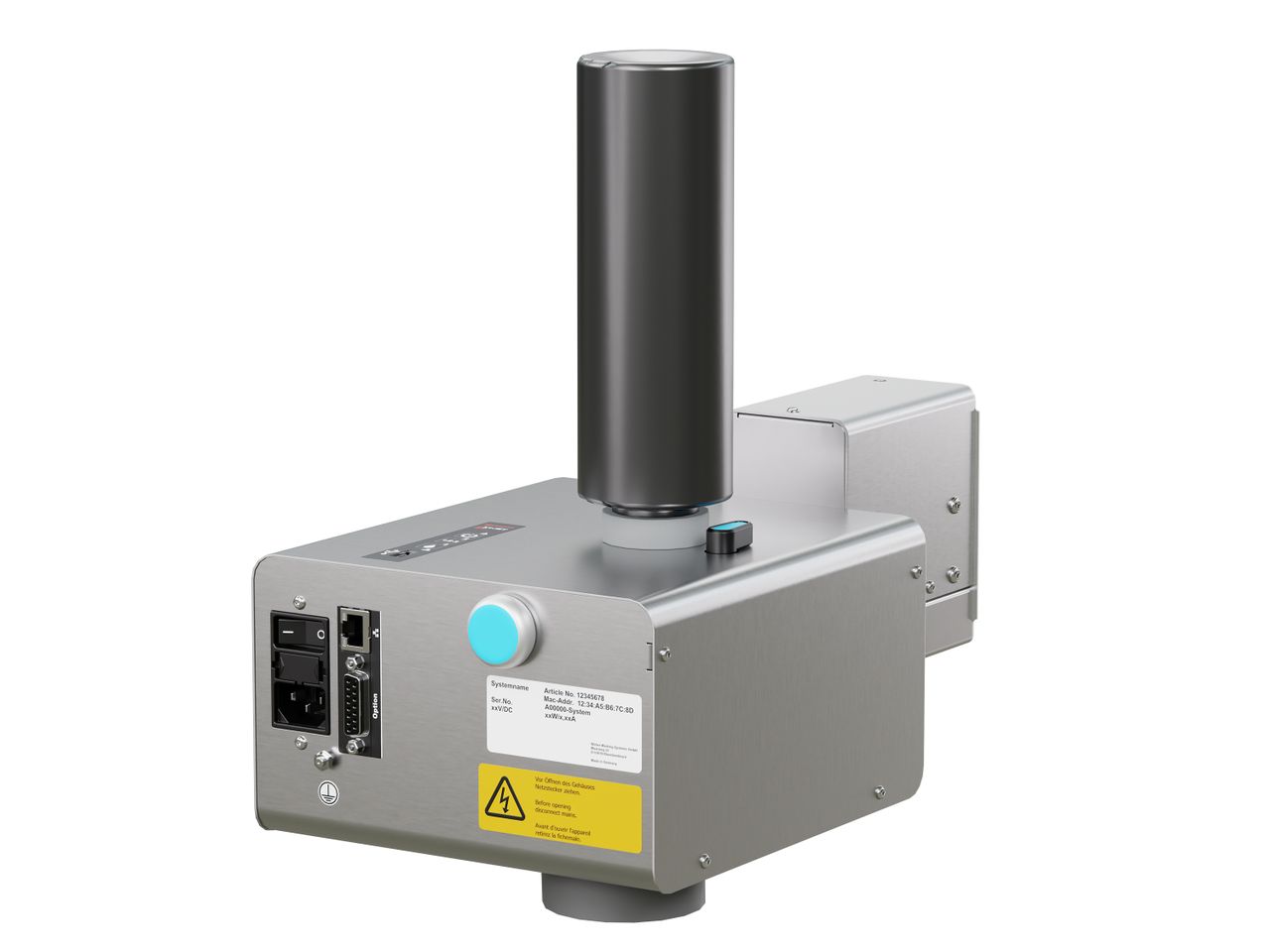

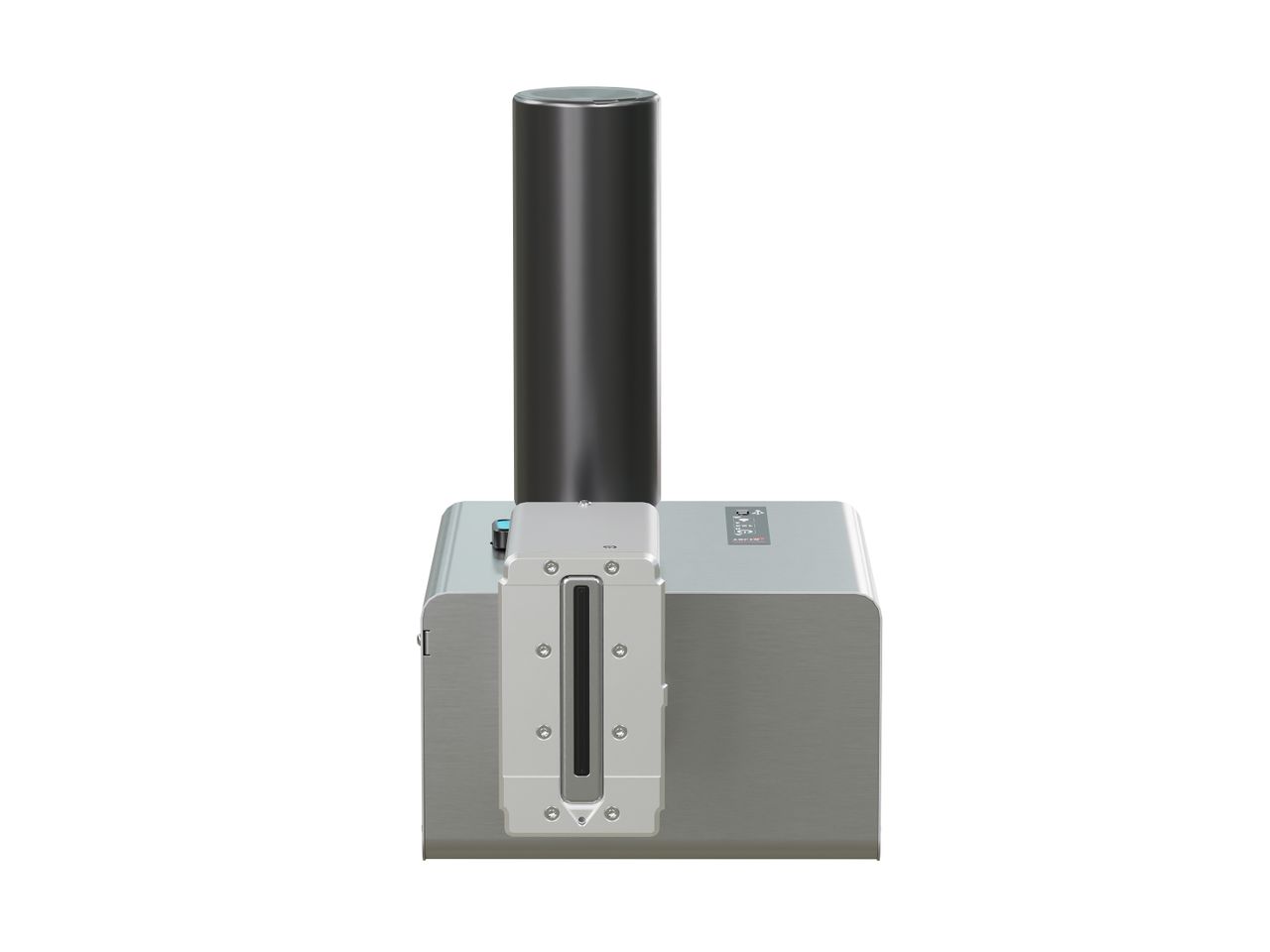

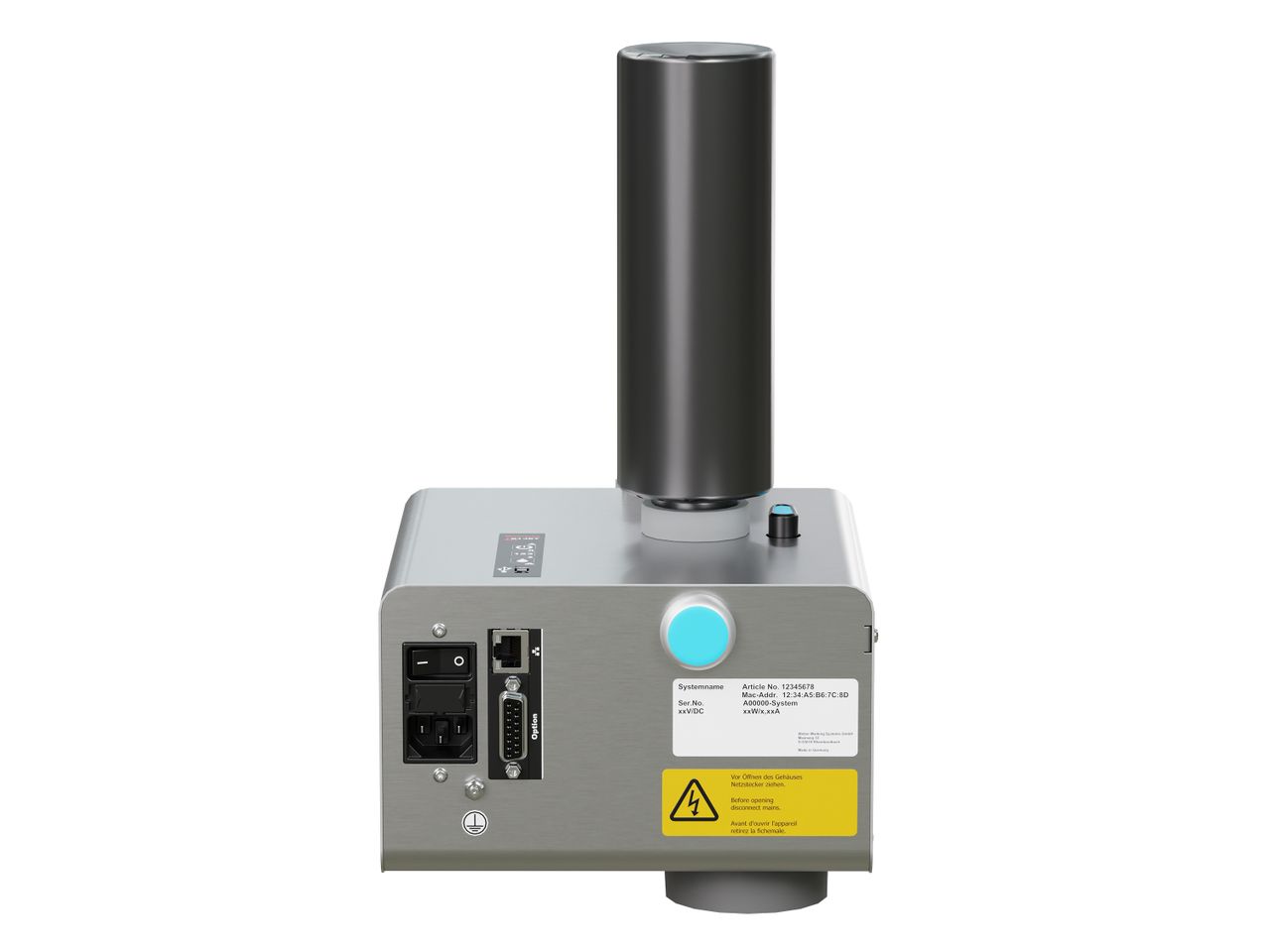

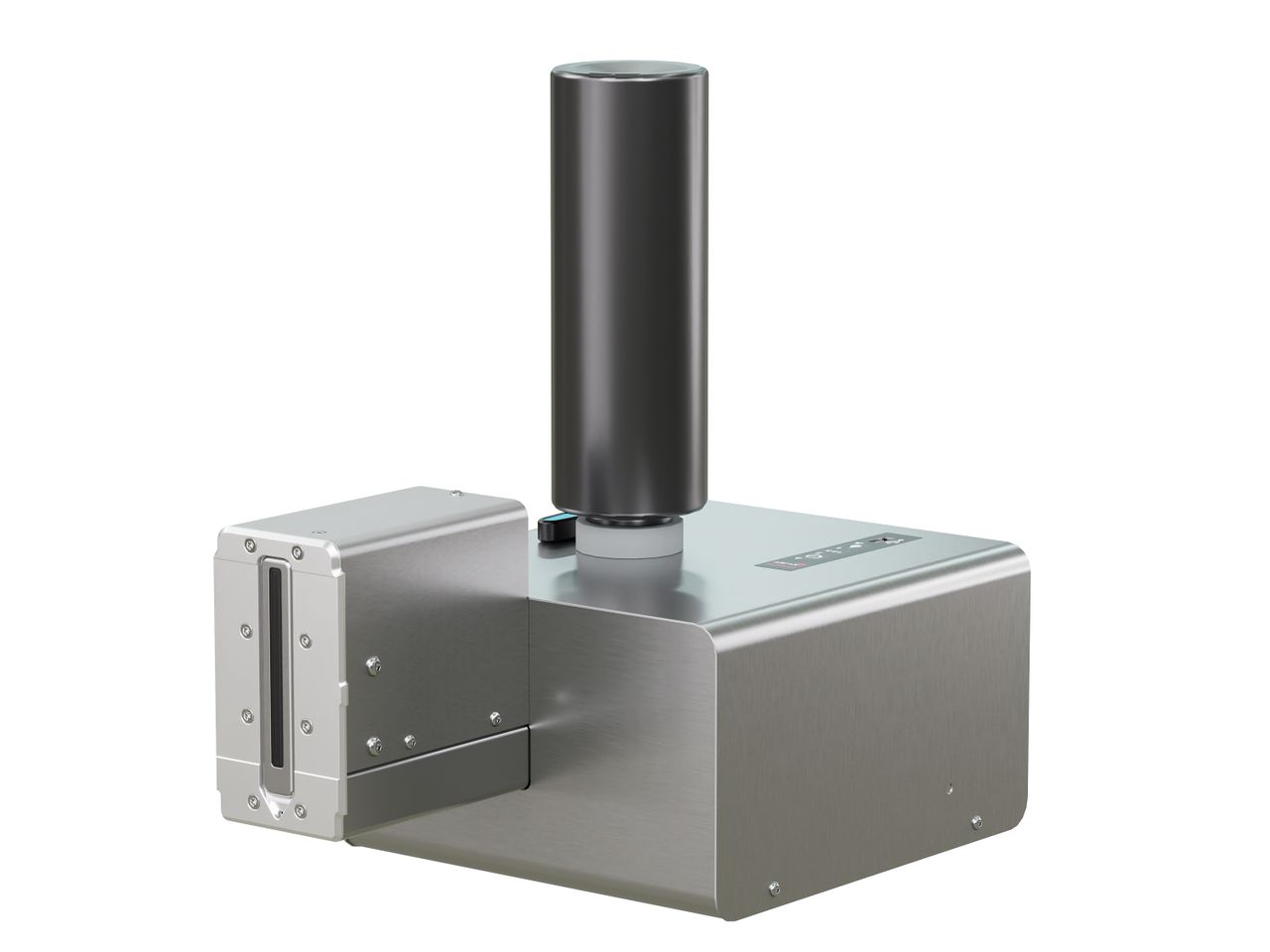

Markoprint X1JET XR

Wide range of large character printers, particularly flexible to integrate

Three versions for different installation scenarios
Print height up to 71 mm, print resolution up to 180 dpi
Achieves print speeds of up to 67 m/min
Simple installation, operation and maintenance
Ideal for large lettering on absorbent surfaces, e.g. carton
Low ink consumption with high printing performance

The Markoprint X1JET XR prints up to 71 mm high. It prints with high contrast and precision on flat, absorbent and slightly absorbent surfaces, such as carton. The piezo inkjet printer realises the large character printing required in many industries without offset and prints high-resolution text, 1D barcodes, 2D codes and graphics. This makes it ideal as a labeling alternative. On request, the Markoprint X1JET XR can also print very small, with a minimum print height of two millimetres.

The compact and economical system is particularly suitable for the food, chemical and building materials industries. It impresses with its simple integration into packaging systems and conveyor lines.

Bag printed with Markoprint X1JET XR inkjet printer

Plasterboard printed with Markoprint X1JET XR inkjet printer

Folding cartons printed with Markoprint X1JET XR inkjet printer

Wooden slat printed with Markoprint X1JET XR inkjet printer

Bag printed with Markoprint inkjet printer

The Markoprint X1JET XR is available in three installation versions: Compact, Vario and Top. In the Compact version, the printhead is permanently mounted vertically. With the Vario version, the printhead can be rotated 90° to the left, e.g. when coding on ascending conveyor belts. With the top version, coding is carried out from the top of the outer packaging or the product.

Markoprint X1JET MX50 and MX100 with convenient all-in-one design

The “All in One” design combines the printhead, ink system, cleaning station, control electronics, and power supply in a compact housing, making operation particularly convenient. This well-thought-out construction not only simplifies the commissioning of the system but also the venting of the ink circuit. In addition, it significantly reduces maintenance requirements and ensures long service life as well as safe and reliable operation.

Markoprint 3 logic buttons for intuitive operation

Simple operation via 3 logic keys with LED indicator lights on the top of the housing ensures user-friendly system control. This means that even untrained employees can operate the Markoprint X1JET XR and carry out print jobs safely.

Markoprint X1JET XR 500 ml ink supply bottle

The specially developed, oil-based ink in the generous 500 ml container is perfectly matched to the requirements of various product surfaces. It is suitable for both low-absorbent and absorbent materials, always ensuring a clear and brilliant print image. Thanks to its short drying time, even coated folding cartons or other demanding packaging materials can be printed efficiently, cleanly, and reliably.

Markoprint X1JET XR with internal ink tank

The integrated ink tank enables particularly flexible operation, as an ink change can easily be carried out even during ongoing production. This eliminates downtime, ensuring that the entire marking process remains stable and reliable without interruption. This solution saves valuable time, increases productivity, and ensures a consistently efficient workflow in modern production environments.

The specially developed Coding Score makes it easier to select and configure Markoprint printing systems. The performance levels – PRINT, BASIC, ADVANCED, PRO, and ULTIMATE – are clearly defined, easy to compare, and vary depending on the system. This creates transparency in decision-making and ensures investment security in a marking solution that can be flexibly expanded at any time. New requirements for production, efficiency, or sustainability can be easily integrated, securing consistently powerful and economical processes.

Technical specifications

Printing specifications

Basic

Pro

Advanced

Printer type

Piezo Ink Jet (PIJ)

Supported printing technology

Print height

2 mm - 71 mm

Basic

2 mm - 71 mm

Pro

2 mm - 71 mm

Advanced

2 mm - 71 mm

Vertical print resolution up to

180 dpi

Basic

180 dpi

Pro

180 dpi

Advanced

180 dpi

Print speed up to

30 m/min

Basic

30 m/min

Pro

67 m/min

Advanced

60 m/min

Recommended distance printhead to product

1 mm

Basic

1 mm

Pro

1 mm

Advanced

1 mm

Orientation

From left to right, From right to left

Function

Top printing, Lateral printing

Number of printheads up to

Maximum number of production lines

Printable content

Text fields, BMP graphics

Basic

Text fields, BMP graphics, Time indication, Date field

Pro

Fields of action, Input of variables, Date offset, Date field, Time indication, Counter, BMP graphics, Text fields, 2D codes, Barcodes

Advanced

Fields of action, Input of variables, Date offset, Date field, Time indication, Counter, BMP graphics, Text fields, Barcodes

Barcodes

Basic

Pro

more on request, UPC-E, UPC-A, QR code, GS1 Databar, GS1 DataMatrix, EAN 13, EAN 8, DataMatrix, Code 128, Code 39, Code 2 out of 5

Advanced

Code 2 out of 5, Code 39, Code 128, EAN 8, EAN 13, UPC-A, UPC-E

Fonts

Customized fonts, All Windows fonts

PDF direct printing

DBPrint

–

Basic

–

Pro

Advanced

–

Spitting

–

Basic

–

Pro

–

Advanced

–

Interpreter software

integra Command

Software requirements

Processor with at least 1 GHz, Interface for connecting the printing device, PC mouse or touchscreen, DirectX 9 or higher with WDDM 1.0 driver, Min. 30 GB hard disk space, 2 GB for 32-bit or 4 GB for 64-bit, Windows 7, 8, 10

Ink

Colour

Black

Composition

Oil formulation

Hardware

Basic

Pro

Advanced

Display

no display

External control panel/display

External Vivid Display, External HMI display

Internal sensor

–

Shaft encoder signal

Frequency max.150 kHz, Switching threshold 7 V, 24 V voltage, Push-pull or NPN

Sensor signal

NPN, Switching threshold 7V

interfaces

Ethernet (TCP/IP), RS-232, 15-pin SUB-D (connection shaft encoder/sensor/inputs and outputs and optional power supply)

USB memory stick slot

PCMCIA slot

–

Flash memory expansion as an option

–

SD memory card slot

–

Status/ Alarm outputs

Basic

Pro

Advanced

WIFI

–

Basic

–

Pro

–

Advanced

–

Physical aspects

System dimensions (HxWxL)

151 mm x 187 mm x 315.5 mm

Weight

5 kg

IP ingress protection

IP 40

Authorisations

Rel. humidity non-condensing

20 - 85 %

Ambient temperature

5 - 40°C

Supply voltage

90-240 V

Mains frequency

50-60 Hz

Amperage

1.25 A

integra Vivid

The 7″ high-resolution HMI color touchscreen of integra Vivid provides a visual display of print jobs and the status of X1JET and PP Class printing systems. At a glance, you can see whether the printing system is operating, the cartridge ink levels, and the current print speed. The innovative swipe-based UI makes editing printer settings and changing print jobs directly on the display especially easy. With its IP52 rating, it is protected in dusty production environments and against dripping water.

Learn more

HMI display

The high-resolution OLED display provides visual representation of functions and settings for Markoprint inkjet printers in the X1JET series. Various printer settings can be checked and changed, and the current printer status is shown. In addition, different print images can be selected and populated with data. The start/stop buttons greatly simplify operation. With intuitive control, the printer can be activated and the label printed. The compact, robust system can be easily integrated into the production line thanks to its small footprint. A bracket allows placement on a table or mounting on a wall. Because the device supports hot plugging, it can be removed during operation and used on other compatible systems. The system starts automatically with the connected printing system. An iLOGIK rotary controller operates the HMI and is used to navigate the various menus. If the selected print image contains a variable field, an input option for the variable text appears after selecting the print job.

Learn more
