Print-Apply Labeling System

Legi-Air 4050I

Energy-efficient all-rounder with maximum protection and a wide range of expansion options

Protection from dust, heat and cold
Stop valve protects applicator
Label size min. 12.7 x 7 mm, max. 150 x 210 mm
Achieves print speeds of up to 400 mm/s
Dispensing cycle rate up to 75 labels/min
Reduced compressed air consumption and low wear

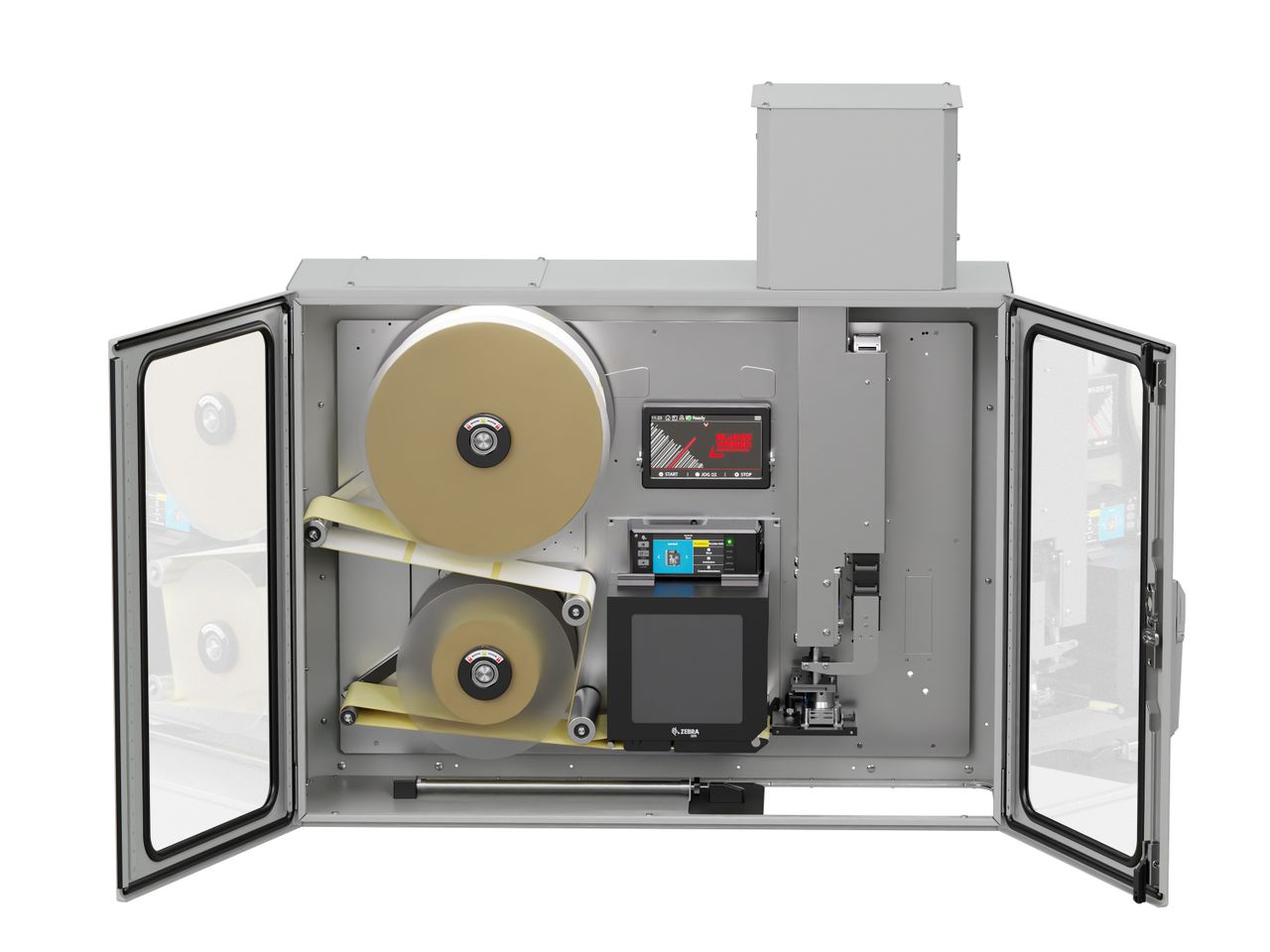

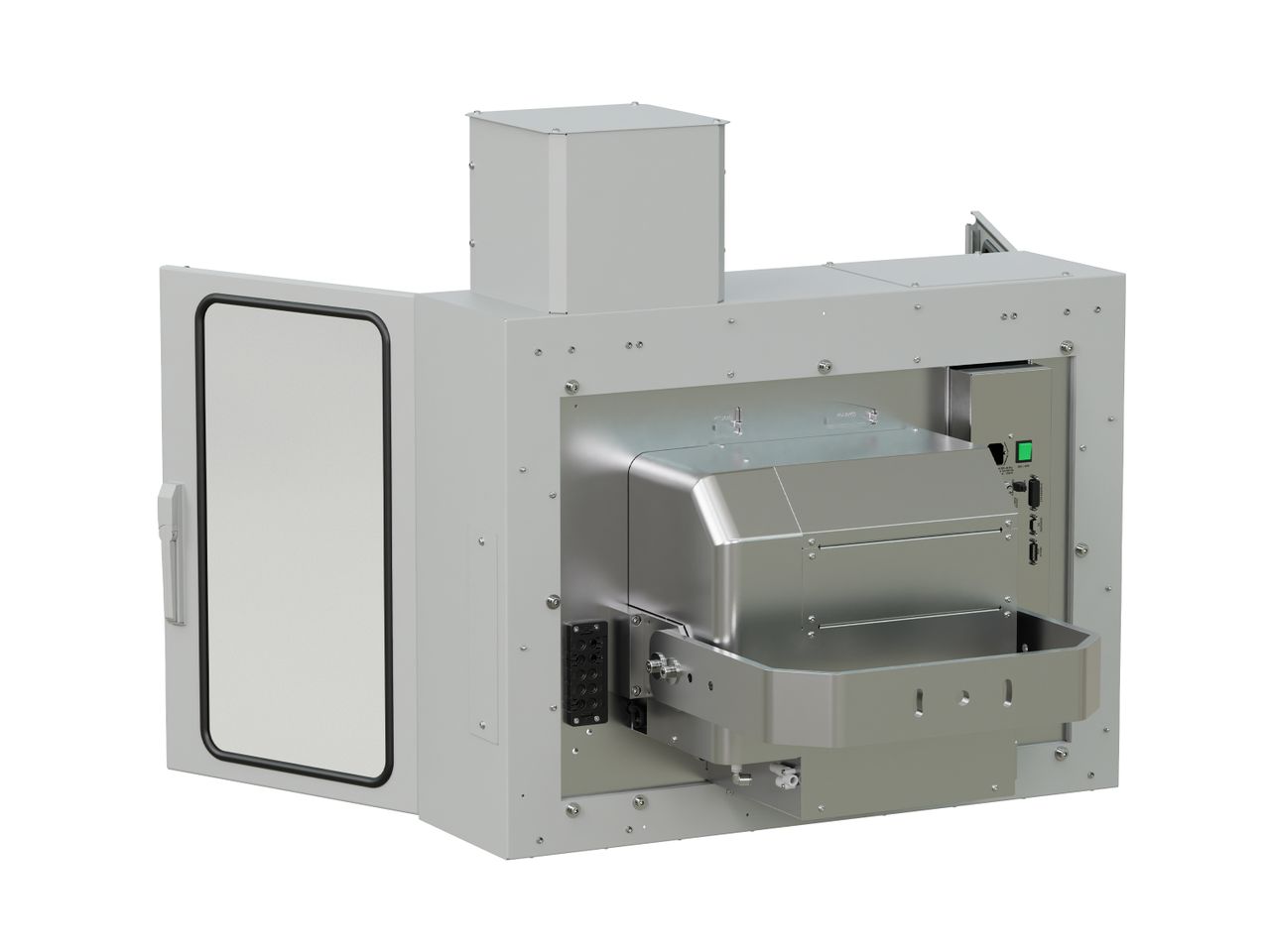

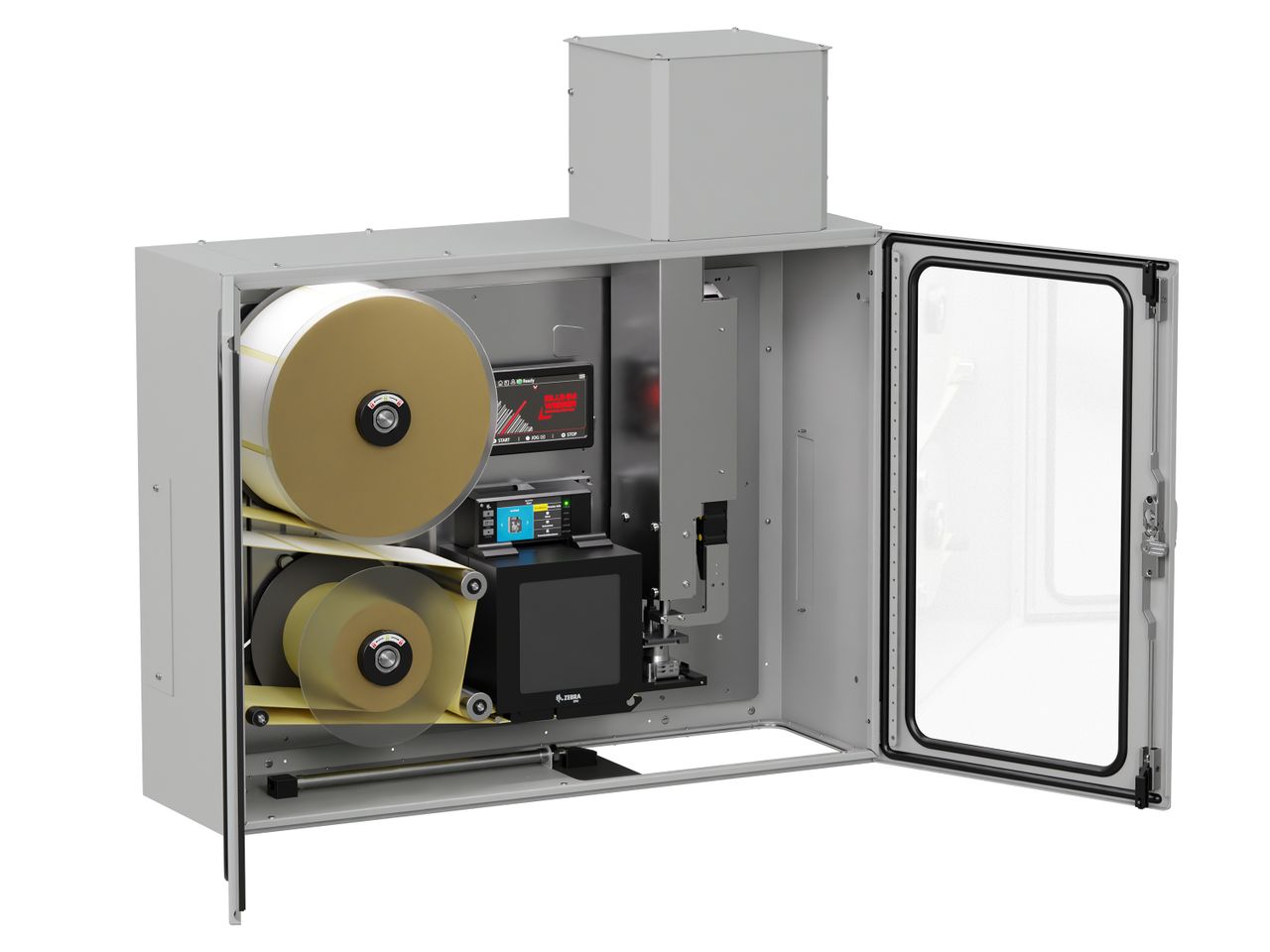

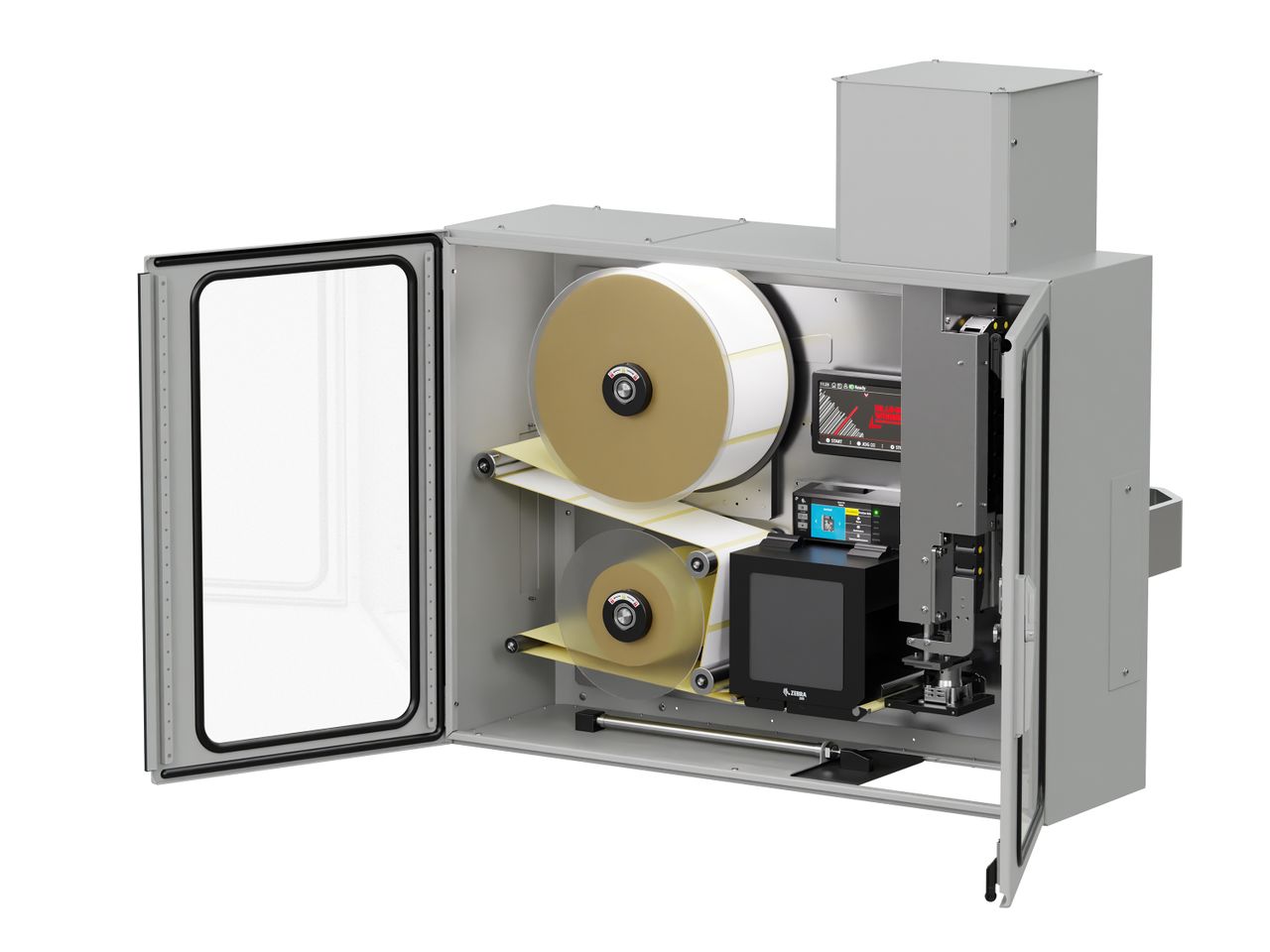

The Legi-Air 4050I label print applicator with stainless steel protective housing is particularly robust. It is housed in a sturdy protective cabinet that protects against dust, cold and heat and enables reliable labeling, especially in demanding industrial environments. Climate control solutions such as pressurisation kits, heating or cooling are optionally available. A stop valve, which prevents the applicator from dropping unintentionally, ensures maximum safety. Different applicators are available depending on the application.

2-colour hazardous substance label on metal drum

2-colour hazardous substance label on drum

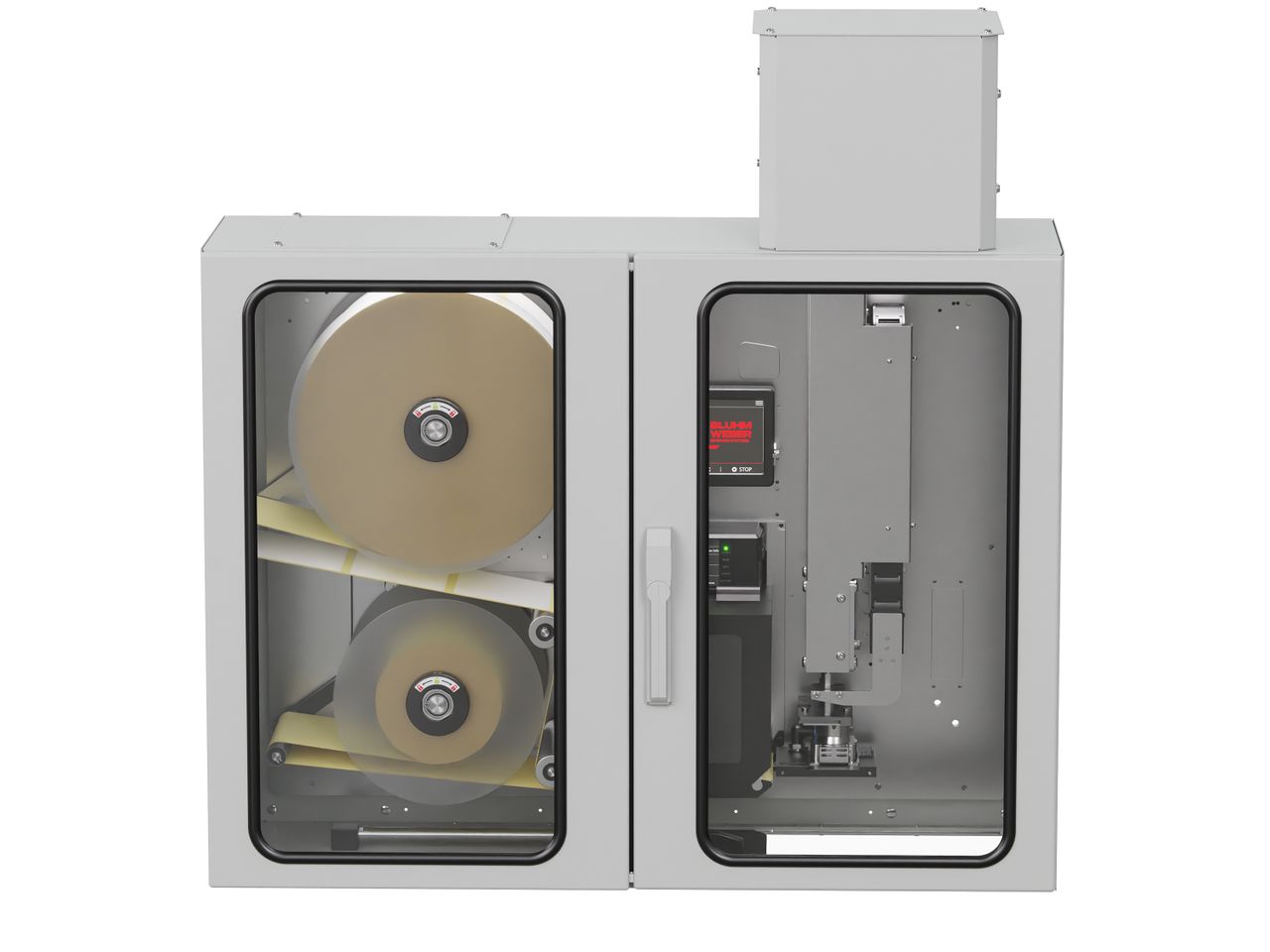

The integrated protective cabinet reliably shields the labeling system from external influences such as dust, heat, and cold, ensuring consistent performance. This extends the system’s service life and significantly reduces the likelihood of failures, even under demanding production conditions.

Scanners or vision systems can be flexibly and precisely deployed as needed. They can be mounted directly on the tamp pad to check labels immediately during application or installed statically on the conveyor to continuously monitor the process. This versatility makes it possible to meet different quality and safety requirements, detect errors at an early stage, and sustainably optimize the entire labeling process.

The compressed air supply is intelligently divided to provide greater operational efficiency. The first inlet controls label handling, vacuum, air-assist function, and blow-off. The second inlet is dedicated to actuators, such as cylinder movements. This separation ensures a stable and powerful supply, enabling more precise control and longer component life.

The electrically driven rewinders and unwinders play a key role in protecting the integrated print module by minimizing mechanical stress. Motorized operation ensures smoother label feed, resulting in exceptionally high print precision. At the same time, process reliability is improved by reducing fluctuations. This guarantees consistent print quality and overall higher reliability in ongoing production.

LN Applicator

Robust linear applicator with proven pneumatic technology

Function	blow-on, tamp-on, wipe-on
Drive concept applicator	Pneumatic
Dispensing stroke length	100 mm - 600 mm

KR Applicator

Compact, precise linear applicator for tight installation spaces

Function	blow-on
Drive concept applicator	Pneumatic
Dispensing stroke length	100 mm - 400 mm

LK Applicator

Particularly robust, universal linear applicator

Function	blow-on, tamp-on, wipe-on
Drive concept applicator	Pneumatic
Dispensing stroke length	100 mm - 600 mm

Zebra ZE511

Highest printing performance for industrial applications

Print width	104 mm
Print speed up to	457 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Zebra ZE521

Highest printing performance for industrial applications

Print width	168 mm
Print speed up to	356 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Sato S84NX

Precise, fast and reliable industrial printing

Print width	104 mm
Print speed up to	406 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Sato S86NX

Precise, fast and reliable industrial printing

Print width	167.5 mm
Print speed up to	355.6 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct, RFID

CAB PX Q4

High-precision print module for automated labeling in industry and logistics

Print width	108.4 mm
Print speed up to	300 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct

CAB PX Q6

High-precision print module for automated labeling in industry and logistics

Print width	168 mm
Print speed up to	250 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 944

Maximum speed for industrial labeling

Print width	106 mm
Print speed up to	400 mm/sec
Printhead resolution	300 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 945

Maximum speed for industrial labeling

Print width	128 mm
Print speed up to	350 mm/sec
Printhead resolution	305 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 946

Maximum speed for industrial labeling

Print width	160 mm
Print speed up to	300 mm/sec
Printhead resolution	305 dpi
Printing process	Thermal transfer, Thermal direct

LDM 180

Efficient dispensing module for use without printing

Technical specifications

Application data

Label position

Side, Top

Labeling mode

in stop mode, throughfeed

Label application rate max.

100 1/min

Positioning accuracy

0.8 mm

Label size min.

12.5 mm x 7 mm

Label size max.

150 mm x 210 mm

Label roll diameter max.

350 mm

Label roll core diameter

76 mm

Dispensing stroke length

1160 mm

Features

Technology

Pneumatic

Mounting orientation independence

Label unwinding

Stepper motor

Label rewinding

Stepper motor

Label shortage warning

yes

Web break detection

optional

HMI

HMI version

Touch display

Physical aspects

System dimensions (HxWxL)

1010 mm x 808 mm x 1000 mm

Weight

120 kg

IP ingress protection

IP 30

Approvals

Rel. humidity non-condensing

15 - 95 %

Ambient temperature

2 - 35°C

Noise level

72 dB

Connections

Supply voltage

92 - 263 V

Frequency

50 - 60 Hz

Current

5 A

Compressed air connection

6 bar

Interfaces

RS232, USB, Ethernet IPv4, Applicator port

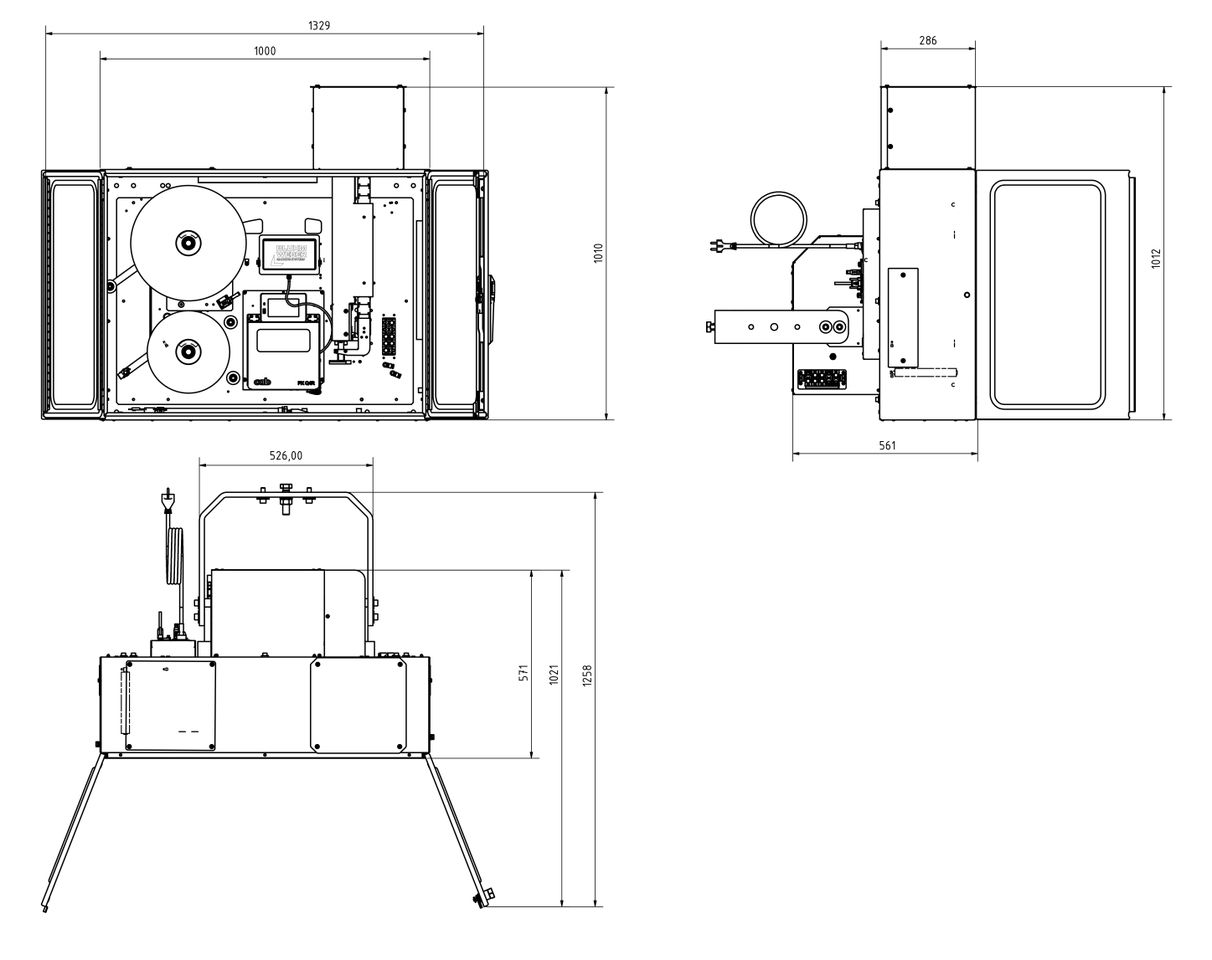

Technical Drawing Legi-Air 4050 I (540.7 kB)
