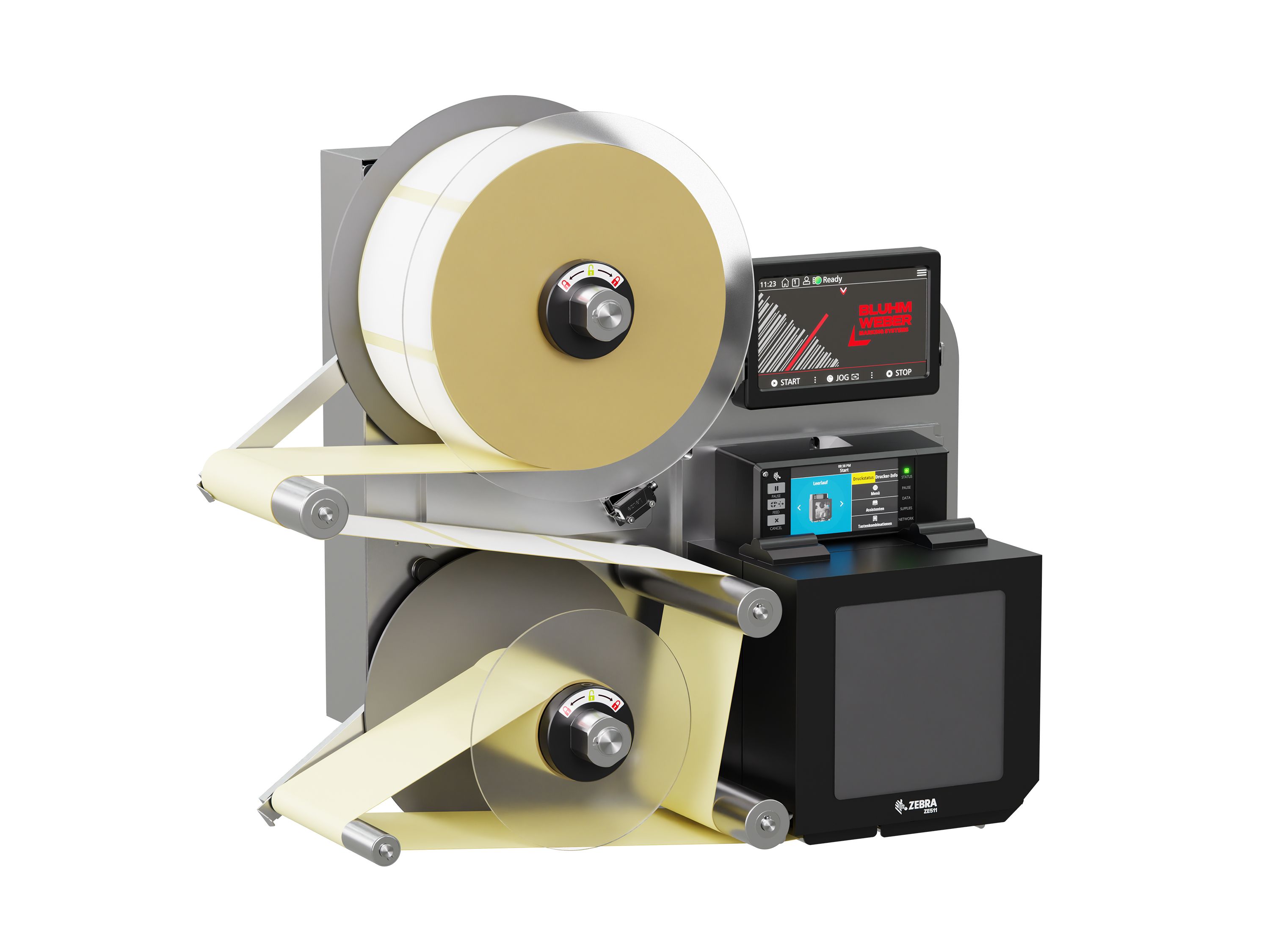

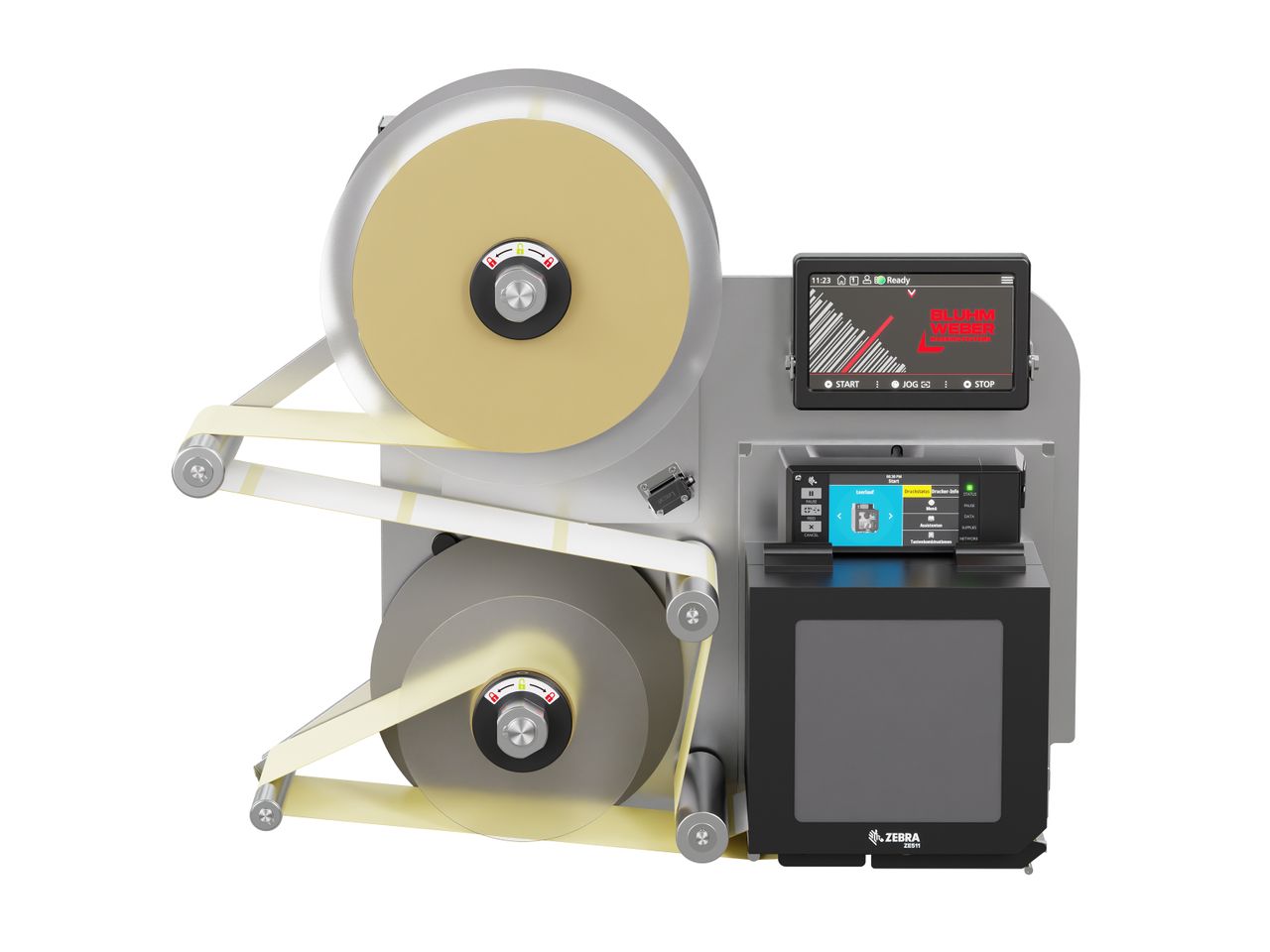

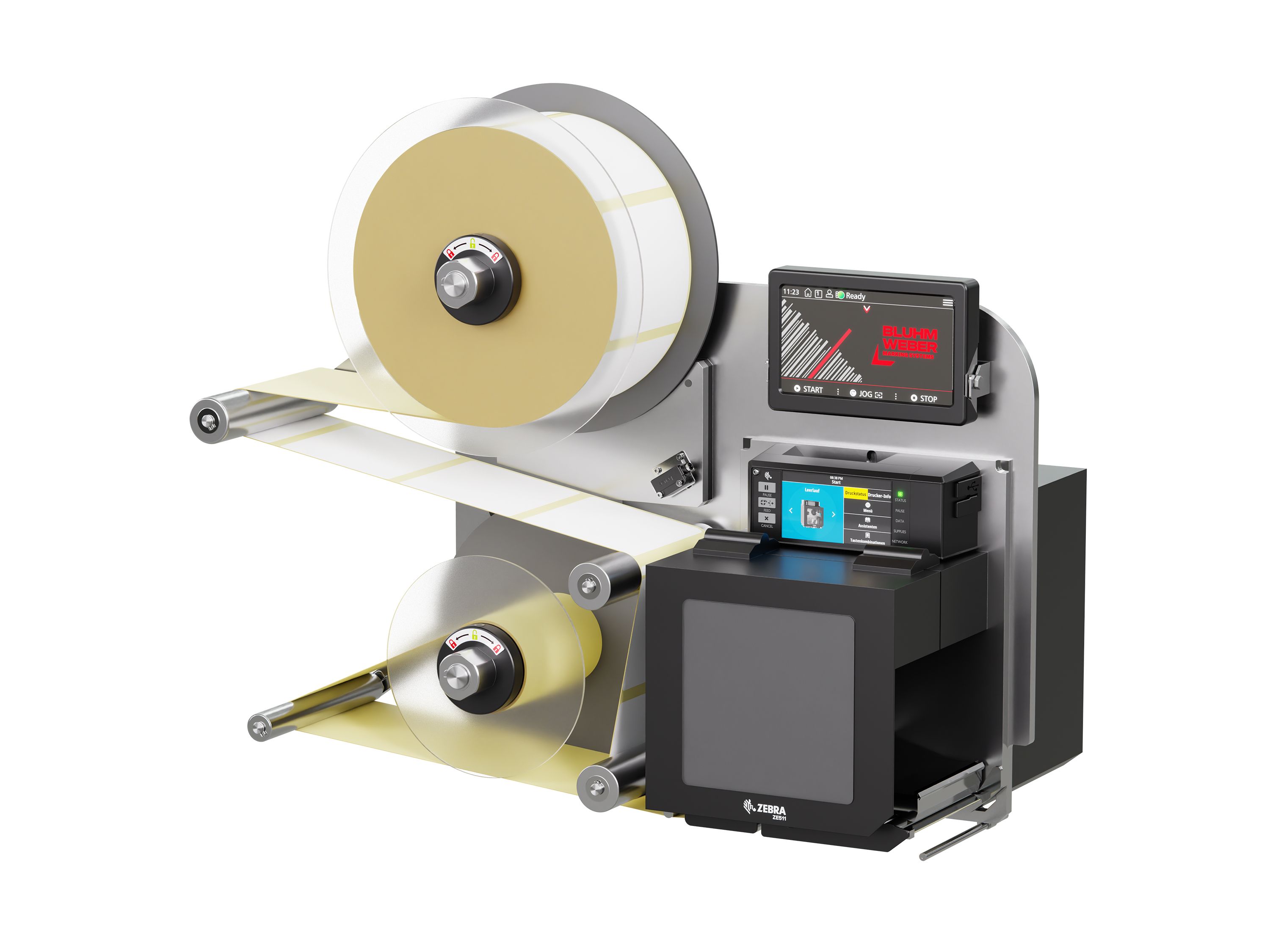

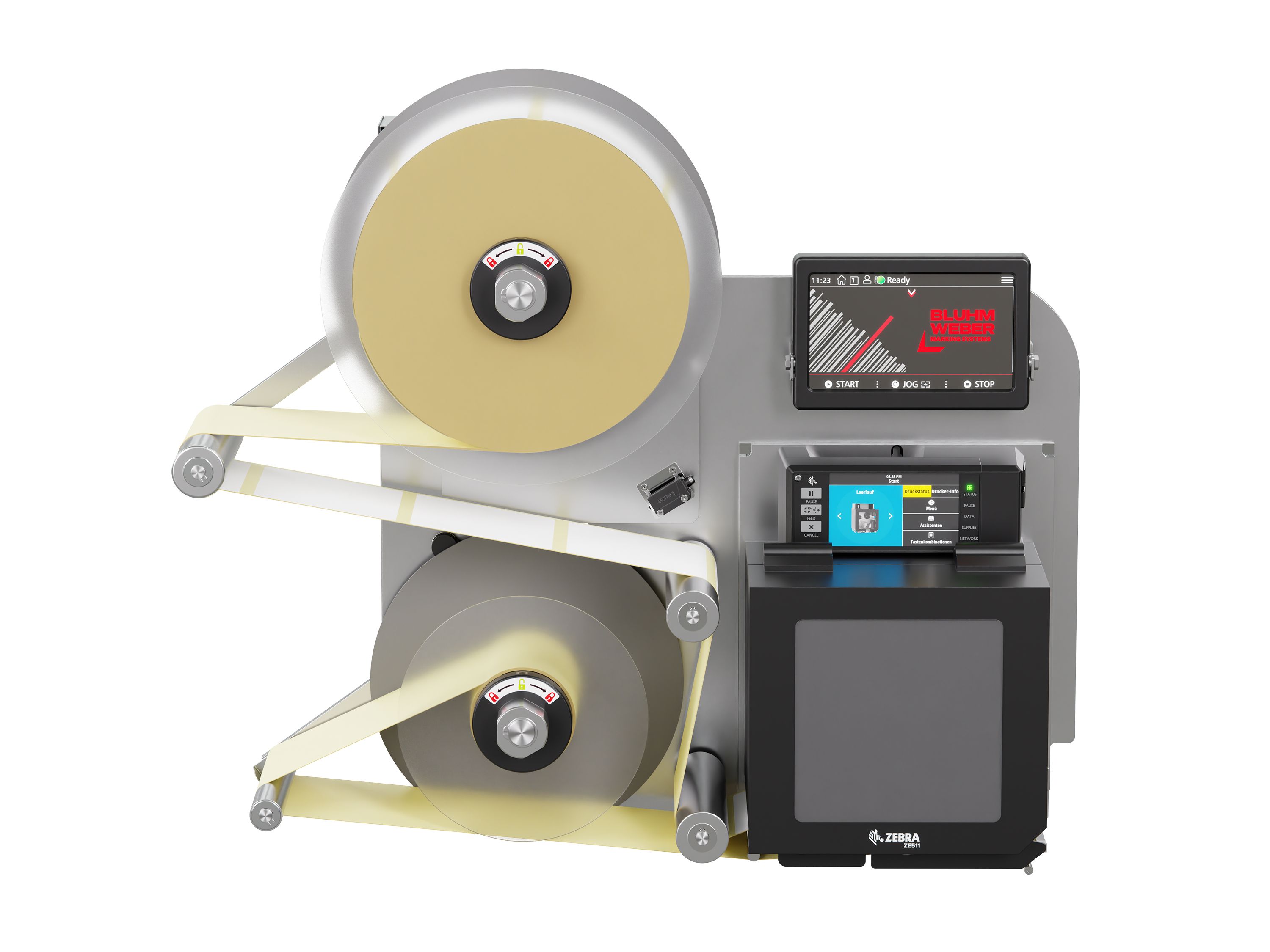

Print-Apply Labeling System

Legi-Air 4050B-R

Flexible print-&-apply system for robot-supported, fully automatic labeling

Specially developed for collaboration with robots
Space-saving and flexible label print applicator
Low compressed air consumption, saves energy costs
Achieves print speeds of up to 400 mm/s
Very compact design with a wide range of extensions

The Legi-Air 4050B-R is a special robot variant designed to work together with multi-axis robot systems. The proven Legi-Air 4050B series serves as the basis. In this configuration, a shortened base plate enables unrestricted accessibility at the peel bar of the print module for several robot applicator and tamp variants.

With the Legi-Air 4050B-R, you benefit from proven technology from large-scale production: The robot-compatible label print applicator is particularly easy to integrate into existing processes. It prints using either thermal transfer or direct thermal technology. High-performance print modules from leading manufacturers that are designed for continuous operation in industrial environments are available.

The Legi-Air 4050B-R works with a robot that is equipped with a custom-designed applicator pad. The robot moves into the pick-up position in front of the print & apply unit, triggers the printing process, and takes over the freshly printed label. It then applies the label precisely to the previously defined position on the product. This interaction between print & apply system and robotics ensures highly precise, repeatable labeling – even with complex product geometries or hard-to-reach areas.

The label print applicator can be combined with a wide range of print modules from well-known manufacturers (Zebra, Sato, Novexx, CAB). It is possible to replace one print module with another at any time without any problems.

The Legi-Air 4050B-R is easy to operate via the multilingual 7" LCD touch display. Fault diagnostics, productivity, maintenance status and events can also be viewed.

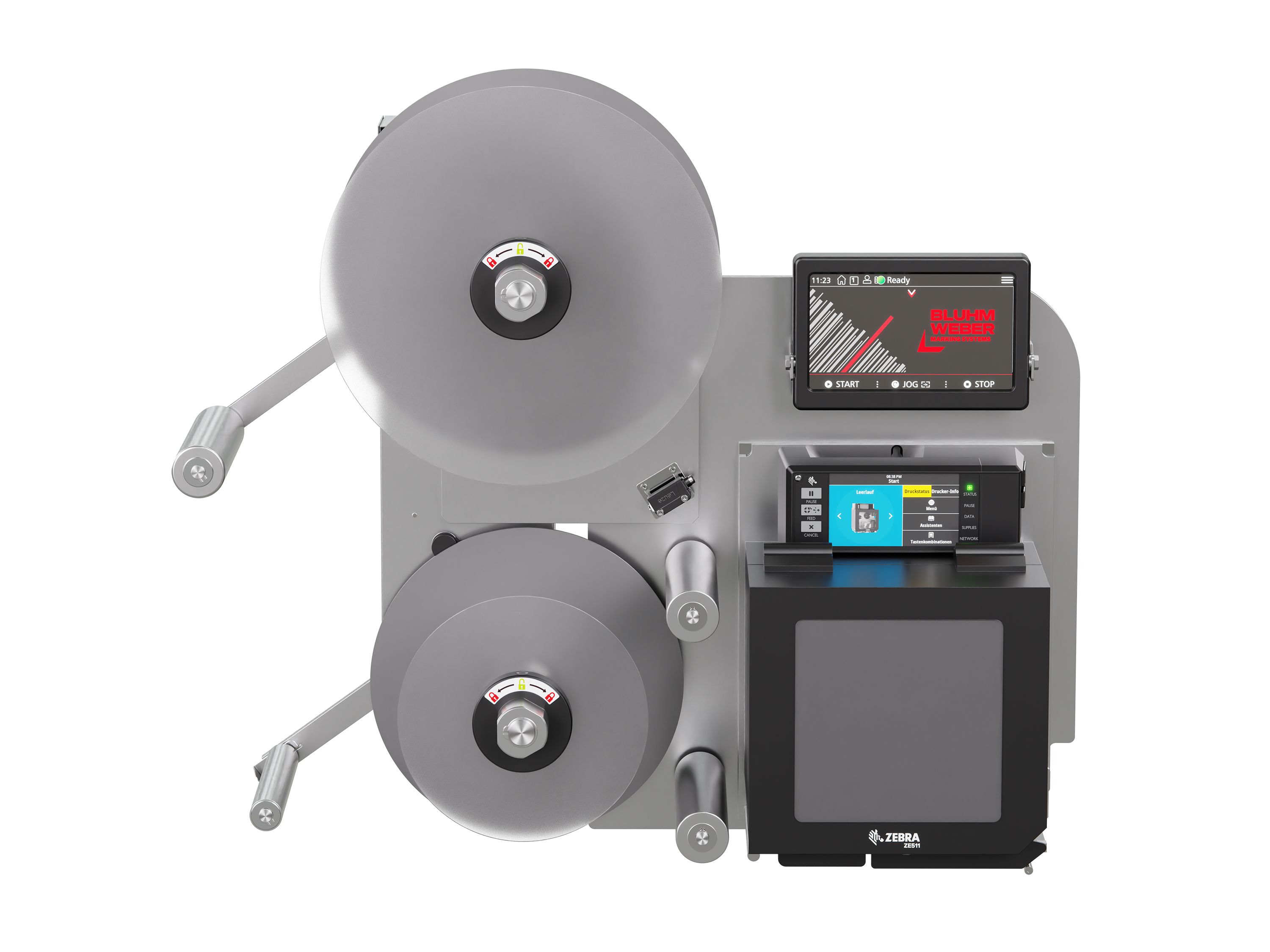

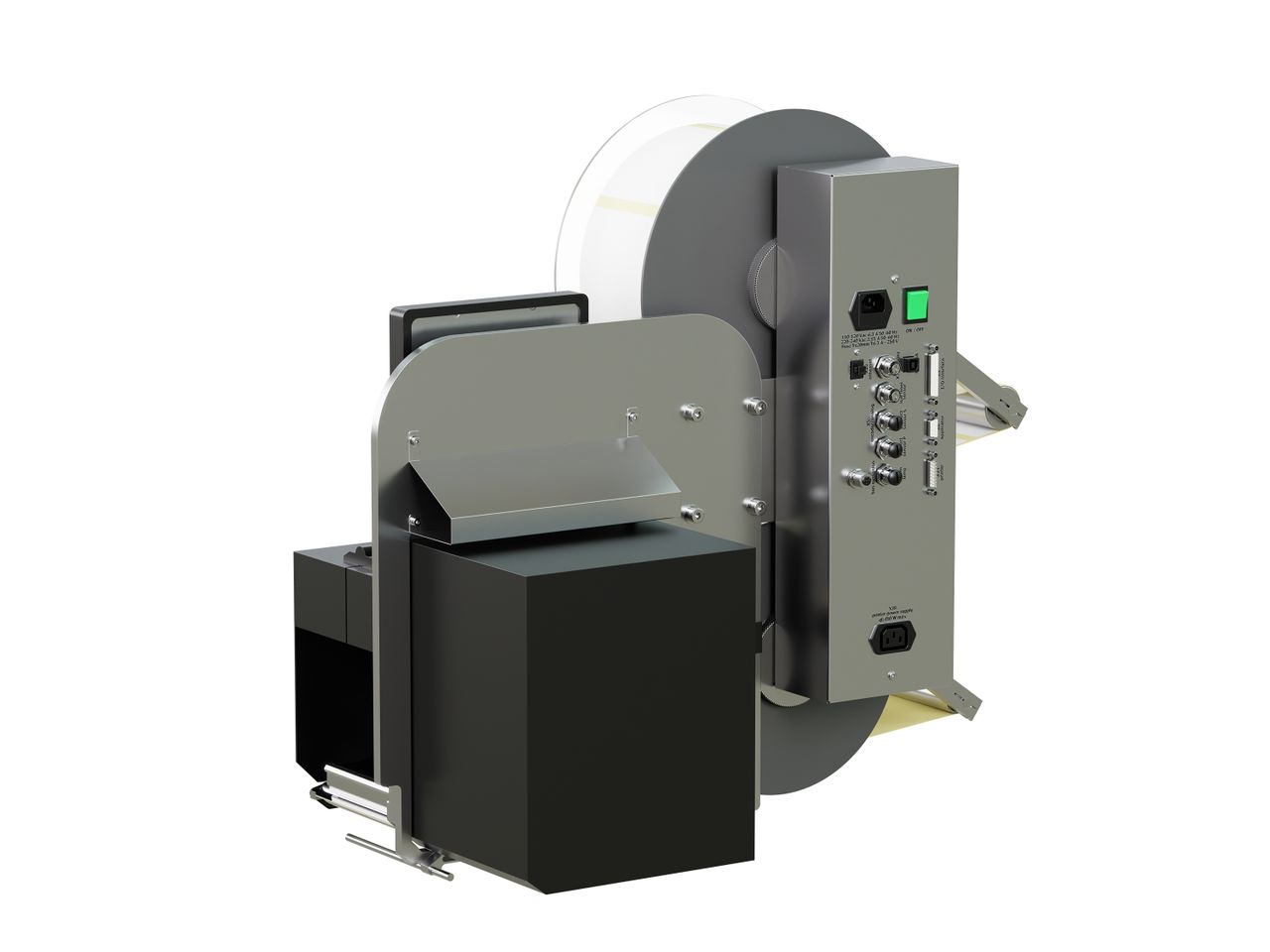

Thanks to its extremely space-saving dimensions, the print & apply labeling system can be integrated without difficulty. Compared to the Legi-Air 4050B, the device has a shortened base plate that allows unrestricted access to the dispensing edge, enabling the robot to interact optimally with its applicator pad.

Zebra ZE511

Highest printing performance for industrial applications

Print width	104 mm
Print speed up to	457 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Zebra ZE521

Highest printing performance for industrial applications

Print width	168 mm
Print speed up to	356 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Sato S84NX

Precise, fast and reliable industrial printing

Print width	104 mm
Print speed up to	406 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct, RFID

Sato S86NX

Precise, fast and reliable industrial printing

Print width	167.5 mm
Print speed up to	355.6 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct, RFID

CAB PX Q4

High-precision print module for automated labeling in industry and logistics

Print width	108.4 mm
Print speed up to	300 mm/sec
Printhead resolution	203 dpi, 305 dpi, 609 dpi
Printing process	Thermal transfer, Thermal direct

CAB PX Q6

High-precision print module for automated labeling in industry and logistics

Print width	168 mm
Print speed up to	250 mm/sec
Printhead resolution	203 dpi, 305 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 944

Maximum speed for industrial labeling

Print width	106 mm
Print speed up to	400 mm/sec
Printhead resolution	300 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 945

Maximum speed for industrial labeling

Print width	128 mm
Print speed up to	350 mm/sec
Printhead resolution	305 dpi
Printing process	Thermal transfer, Thermal direct

Novexx XDM 946

Maximum speed for industrial labeling

Print width	160 mm
Print speed up to	300 mm/sec
Printhead resolution	305 dpi
Printing process	Thermal transfer, Thermal direct

LDM 180

Efficient dispensing module for use without printing

Technical specifications

Application data

Labeling mode

in stop mode, throughfeed

Label application rate max.

70 1/min

Label roll diameter max.

300 mm

Features

Technology

Pneumatic

Mounting orientation independence

yes

Label unwinding

Stepper motor

Label rewinding

Stepper motor

Label shortage warning

optional

Web break detection

HMI

HMI version

Text display

Physical aspects

System dimensions (HxWxL)

612 mm x 400 mm x 692 mm

Weight

35 kg

Approvals

Rel. humidity non-condensing

15 - 95 %

Ambient temperature

2 - 35°C

Noise level

70 dB

Connections

Supply voltage

90 - 263 V

Frequency

50 - 60 Hz

Current

5 A

Compressed air connection

6 bar

Interfaces

USB, WLAN 802.11 a/b/g/n/ac (retrofit option), Applicator port, RS232, Ethernet IPv4

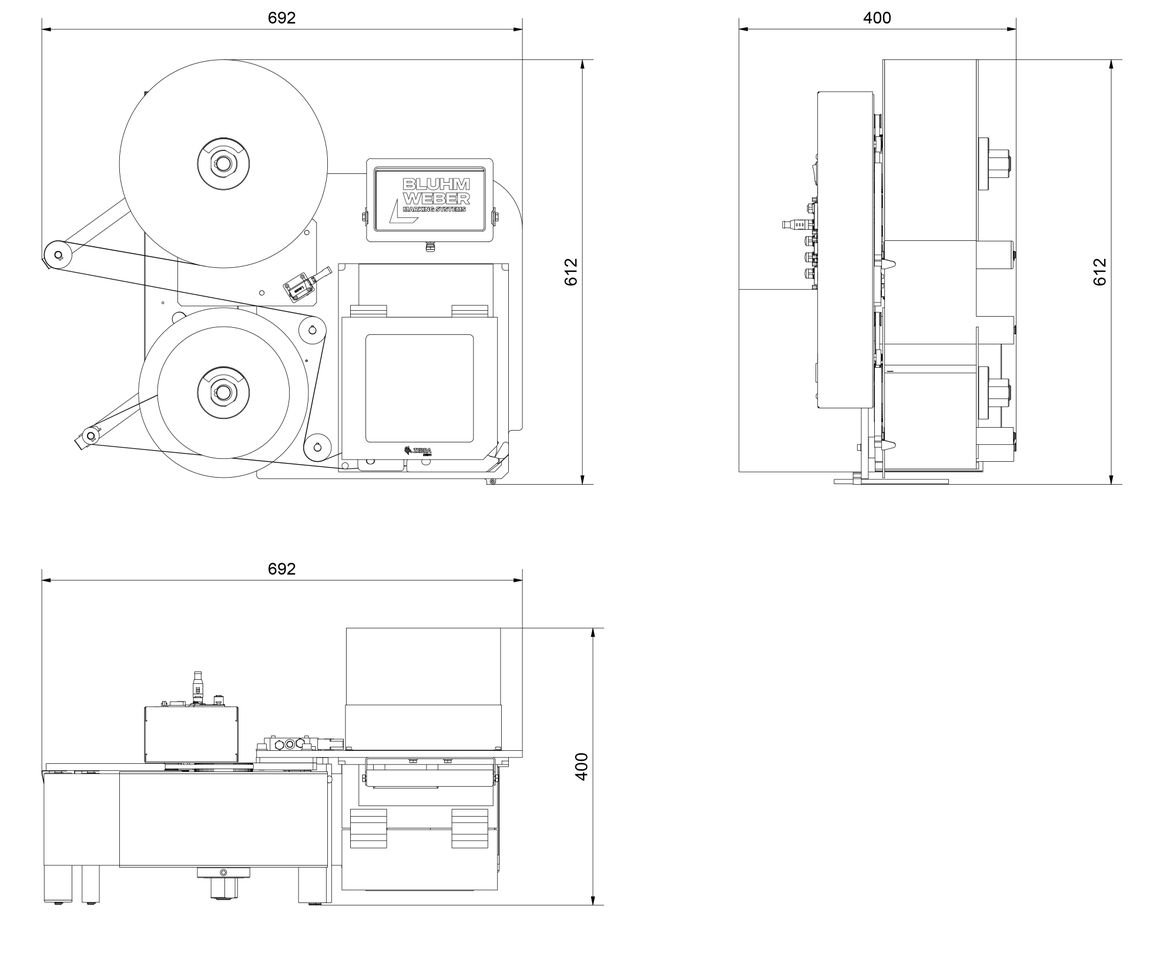

Technical Drawing Legi-Air 4050 B-R (262.7 kB)
