Print-Apply Labeling System

Legi-Air 2050

The affordable entry-level model - for high performance in a small space

  • Automatically recognises parcel heights thanks to integrated sensor
  • Non-contact labeling protects sensitive products
  • Dispensing cycle rate up to 30 labels/min
  • Achieves print speeds of up to 200 mm/s at 300 dpi
  • Label size max. 40 x 30 mm / min. 120 x 160 mm

Compact, robust and easy to use in practice

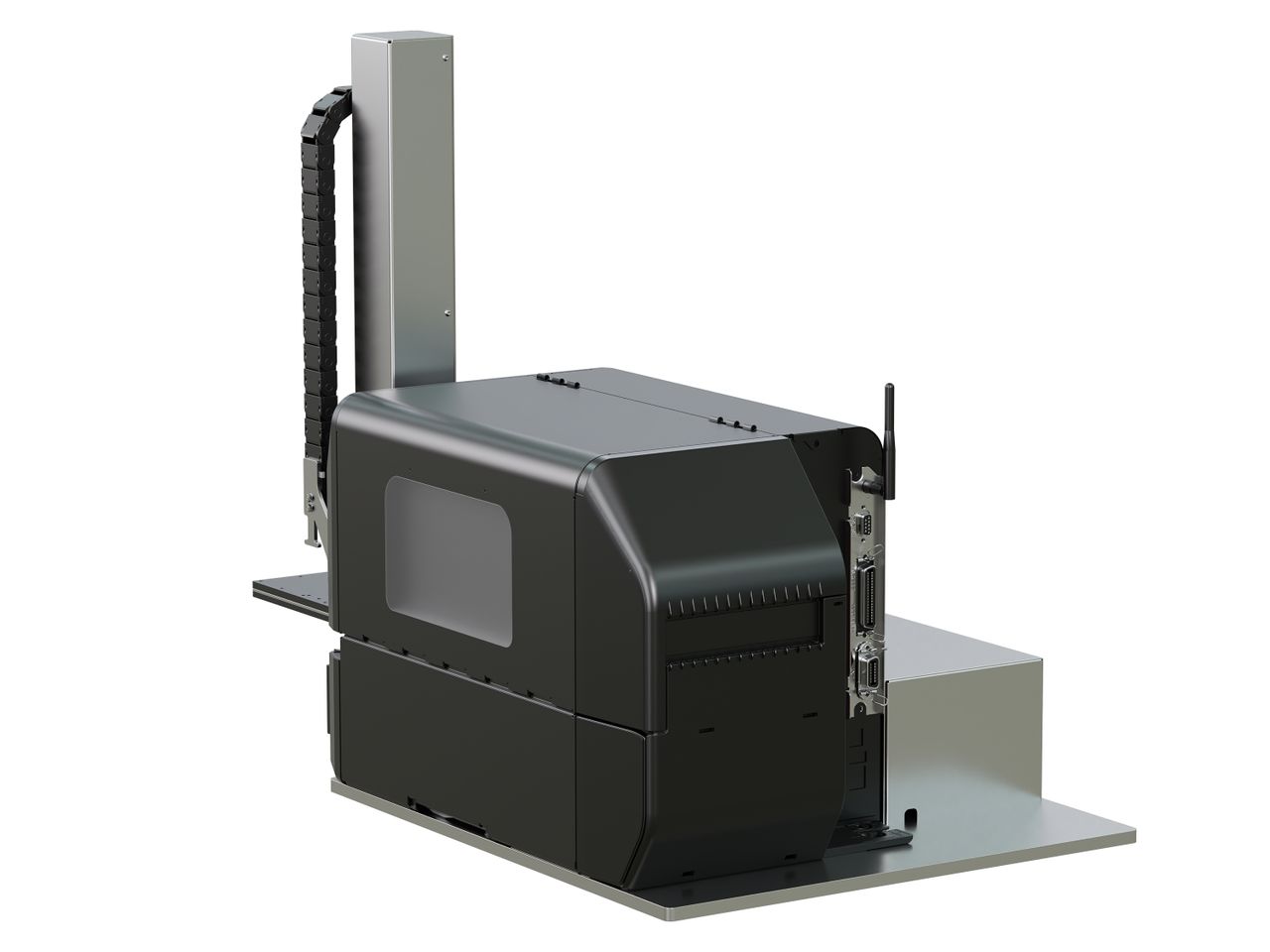

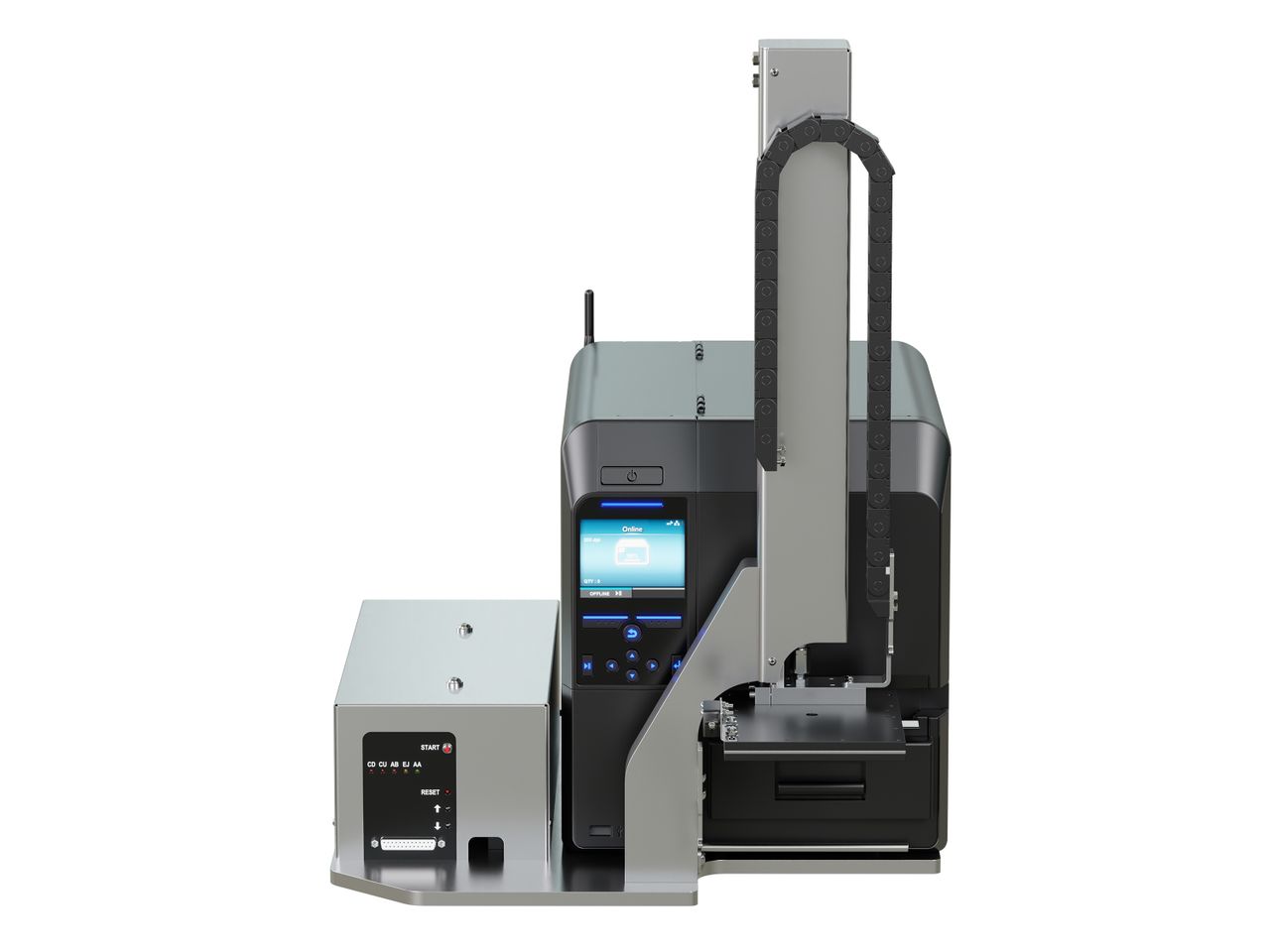

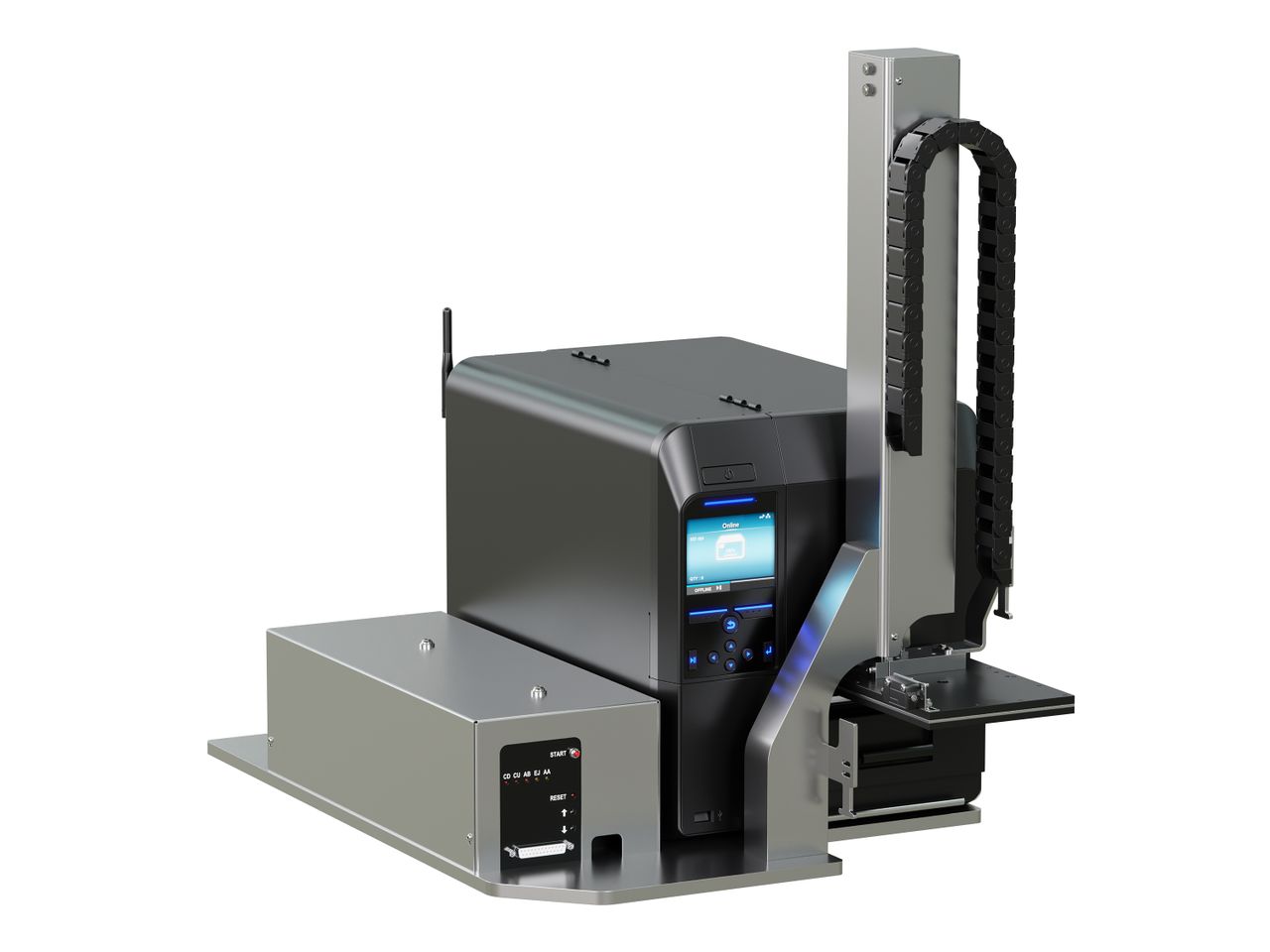

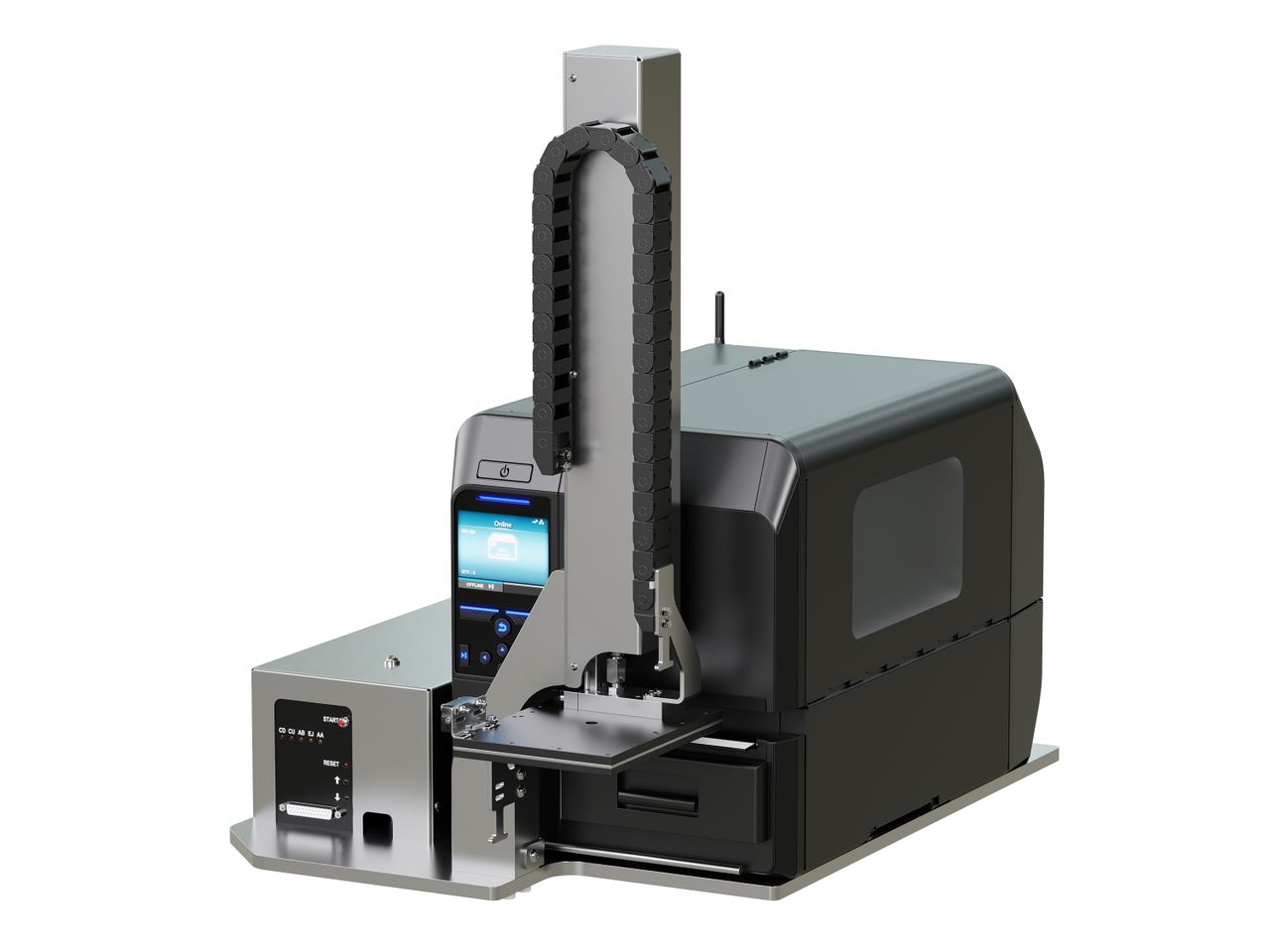

The Legi-Air 2050 labels reliably on simple production and packaging lines. Its variable application stroke labels products and packaging of different heights with extreme precision. The robust tamp-blow applicator applies labels from stamp size to DIN-A6 format without contact.

The label print applicator is perfect for getting started with automatic labeling or for small and medium-sized production runs. Semi-automatic operation is also possible at manual workstations, for example in the electronics industry, in mechanical engineering or in the automotive industry. Five different starter kits with tamp pad and consumable materials are available for an immediate start.

With the Legi-Air 2050, you benefit from proven technology from large-scale production: The low-cost label print applicator was developed in a modular design and is particularly easy to integrate into existing processes and just as easy to operate. It prints using either thermal transfer or direct thermal technology.

Applications

Shipping label on top of carton 1
Shipping label on the side of carton 2
Label on carton

Special features

Legi-Air 2025 label roll and ink ribbons

Five different starter kits

Five different starter kits are available depending on the required label size. They each contain a tamp pad with four matching label rolls and ink ribbons. Ask for our starter kits "EAN label", "Address label", "Shipping label", "Carton label" and "Shipping label". Customised starter kits for your application are of course also available.

Legi-Air 2025 high range

High range

The Legi-Air 2050 processes large label rolls with an outside diameter of up to 218 mm and thus achieves high ranges. This is further supported by the large ribbon supply of 600 m. If ribbon or labels need to be refilled, this can be done quickly and easily thanks to the easily accessible design.

Legi-Air 2025 compact design

Compact dimensions for confined production environments

The Legi-Air 2050 is a compact class label print applicator. Its compact design, low basic weight and simple attachment make it easy to integrate into a wide variety of production lines. The easily accessible design simplifies the reloading of label material.

Legi-Air 2025 sensor

Sensory monitoring of the entire donation process

The system monitors the presence of the label on the tamp pad. It automatically recognises different product heights with its integrated sensor.

Technical specifications
Application data
Labeling mode
in stop mode, throughfeed
Label application rate max.
15 1/min
Positioning accuracy
1.5 mm
Label size min.
40 mm x 30 mm
Label size max.
120 mm x 160 mm
Label roll diameter max.
218 mm
Dispensing stroke length
300 mm
Features
Technology
Pneumatic
Mounting orientation independence
No
Label shortage warning
No
Web break detection
No
Physical aspects

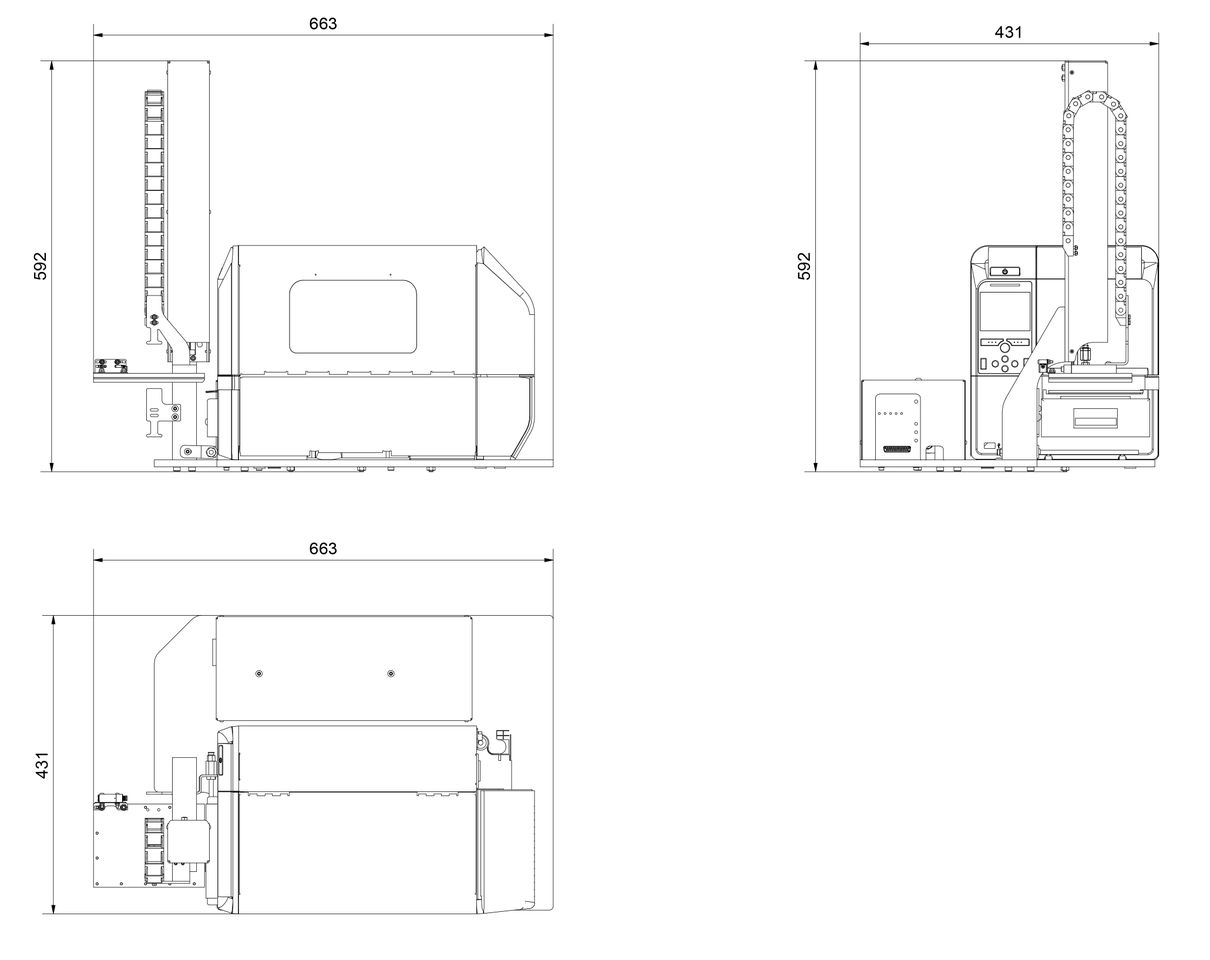

System dimensions (HxWxL)
592 mm x 663 mm x 431 mm
Weight
33 kg
Approvals
CE
Rel. humidity non-condensing
15 - 95 %
Ambient temperature
2 - 35°C
Noise level
72 dB
Connections
Supply voltage
90 - 263 V
Frequency
50 - 60 Hz
Current
5 A
Compressed air connection
6 bar
Interfaces
WLAN 802.11 a/b/g/n/ac (retrofit option), USB host dual, USB, Applicator port
