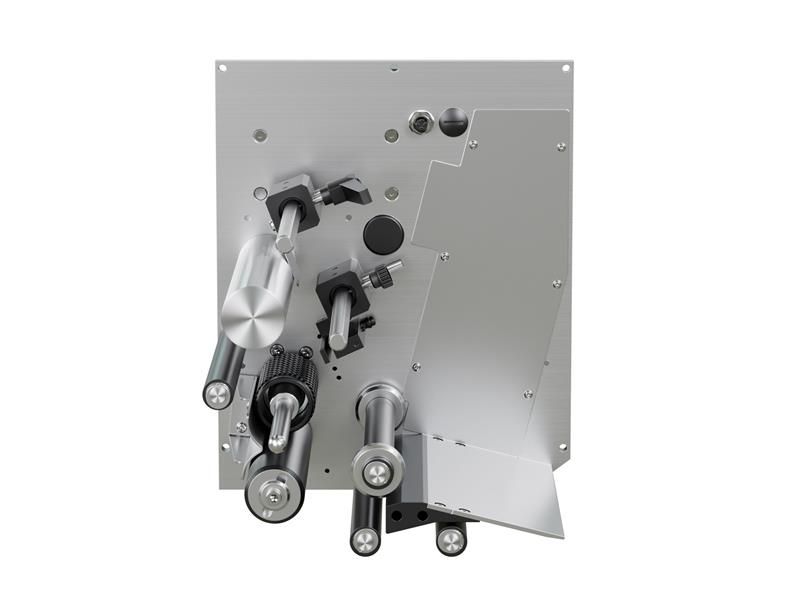

Label dispensing module

LDM 180

Efficient dispensing module for use without printing

Dispensing without printing – ideal for pre-printed labels
Up to 360 labels per minute for high cycle rates
Fast format change thanks to calibration function
Integrated skip function for missing labels
Easy integration into LA4050-E/I/S and LA6000 systems

The LDM-180 is a powerful and versatile dispensing module for industrial labeling processes, specifically designed for use with the LA 4050 E/I/S and LA6000 print-&-apply systems. It is used whenever a print-&-apply labeler is to be operated purely as a dispensing module—i.e., without an active printing function. With a maximum dispensing rate of up to 360 labels per minute and a placement accuracy of ±0.8 mm, the module is ideal for applications with high demands on speed and precision. The working width of 180 mm and easy integration into existing systems offer maximum flexibility. The intuitive label calibration function enables rapid format changes, while the integrated skip function ensures uninterrupted production even when labels are missing. Thanks to its robust cast-aluminum housing, USB interface for setup transfers, and high compatibility, the LDM-180 is the perfect solution for modern labeling requirements.

The LDM-180 was developed specifically for applications where a print-&-apply labeler is used solely as a dispenser—without a printing function. This is ideal when processing pre-printed labels or applying simple markings. Users benefit from the proven LA4050/LA6000 technology combined with a cost-effective, low-maintenance setup.

With a dispensing rate of up to 360 labels per minute and repeat accuracy of ±0.8 mm, the LDM-180 meets demanding industrial requirements. Whether small, fast labels or larger formats—the system adapts flexibly. Thanks to precise label detection and variable speed, quality remains consistently top-level even at high production speeds.

Features such as automatic calibration during label changes and the integrated skip function—which automatically bridges gaps when labels are missing—ensure uninterrupted operation. Configurations can be transferred easily via the USB interface. Control is conveniently handled via the display of the associated print-&-apply system for maximum ease of use.

Technical specifications

Technical values

Label length

10 - 300 mm

Label width

20 - 170 mm

Print media

Material width max (labels and liner)

180 mm

Features

Display

no display

Flash memory expansion as an option

–

SD memory card slot

–

PDF direct printing

–

Physical aspects

Dimensions system

245 mm x 407 mm x 300 mm

Weight

12 kg

Authorisations

CE

Rel. humidity non-condensing

15 - 85 %

Ambient temperature

10 - 38°C

Supply voltage

90 - 240 V

Frequency

47 - 63 Hz
