Automatic labeling machine

Geset 141

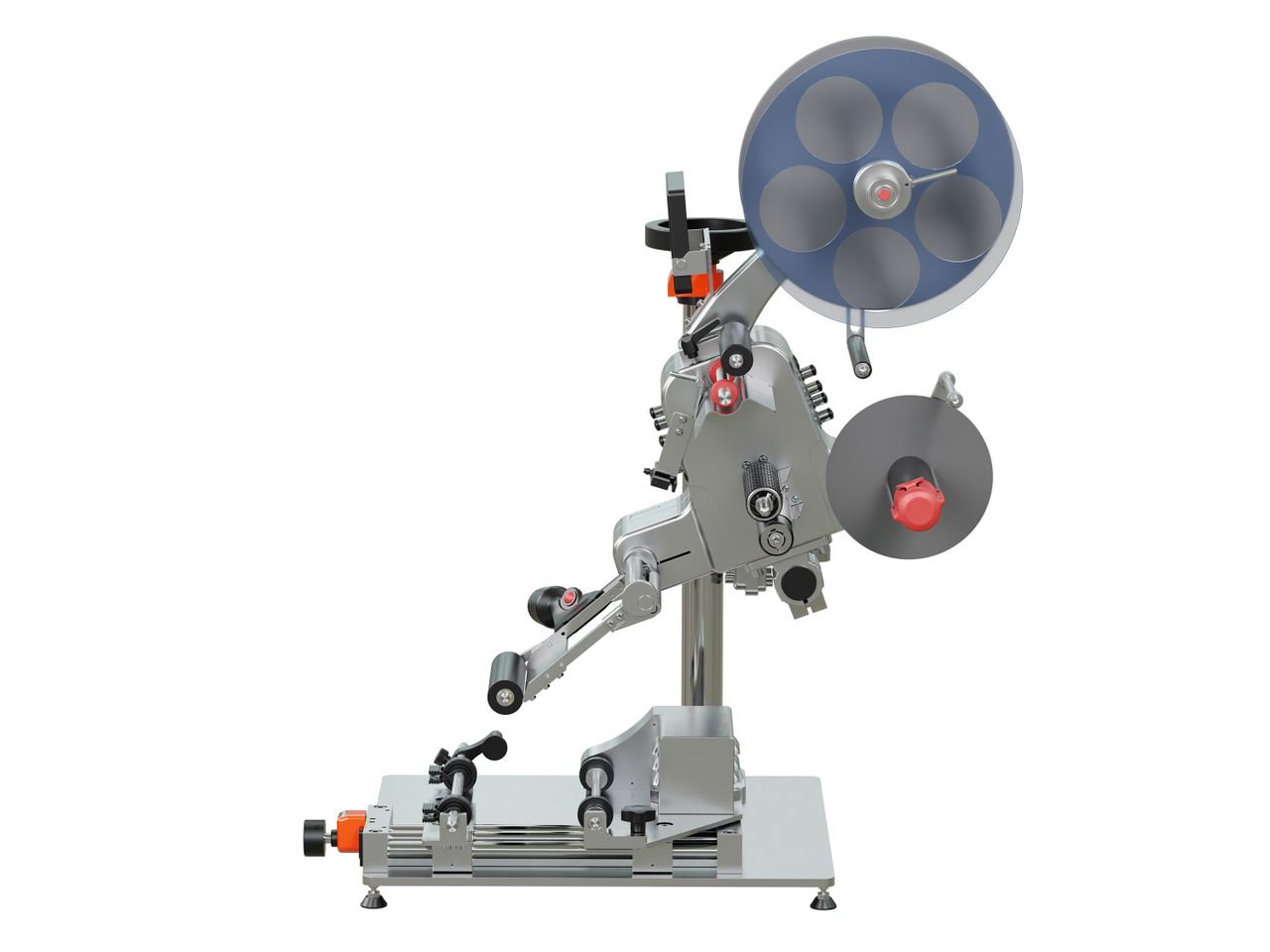

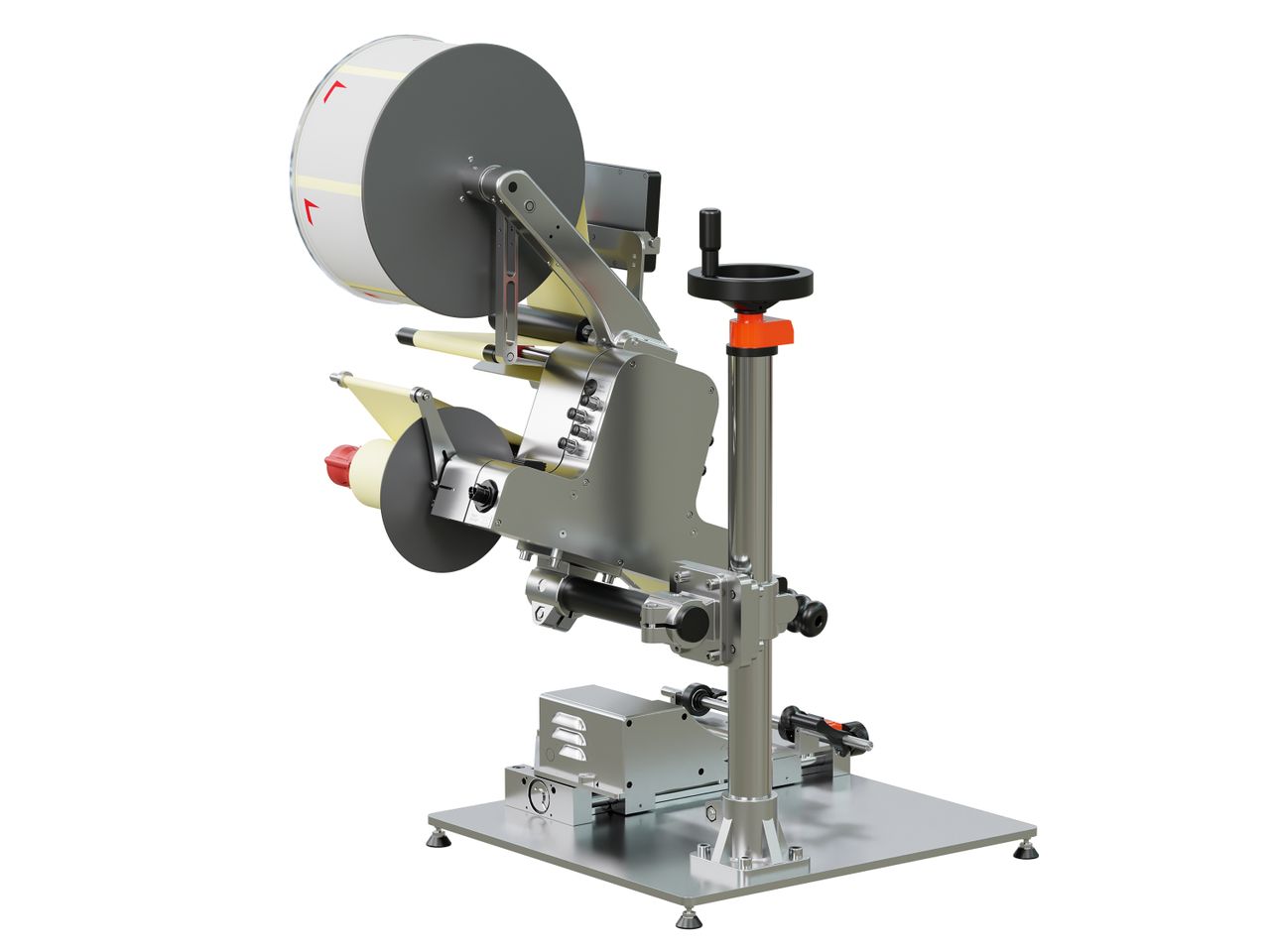

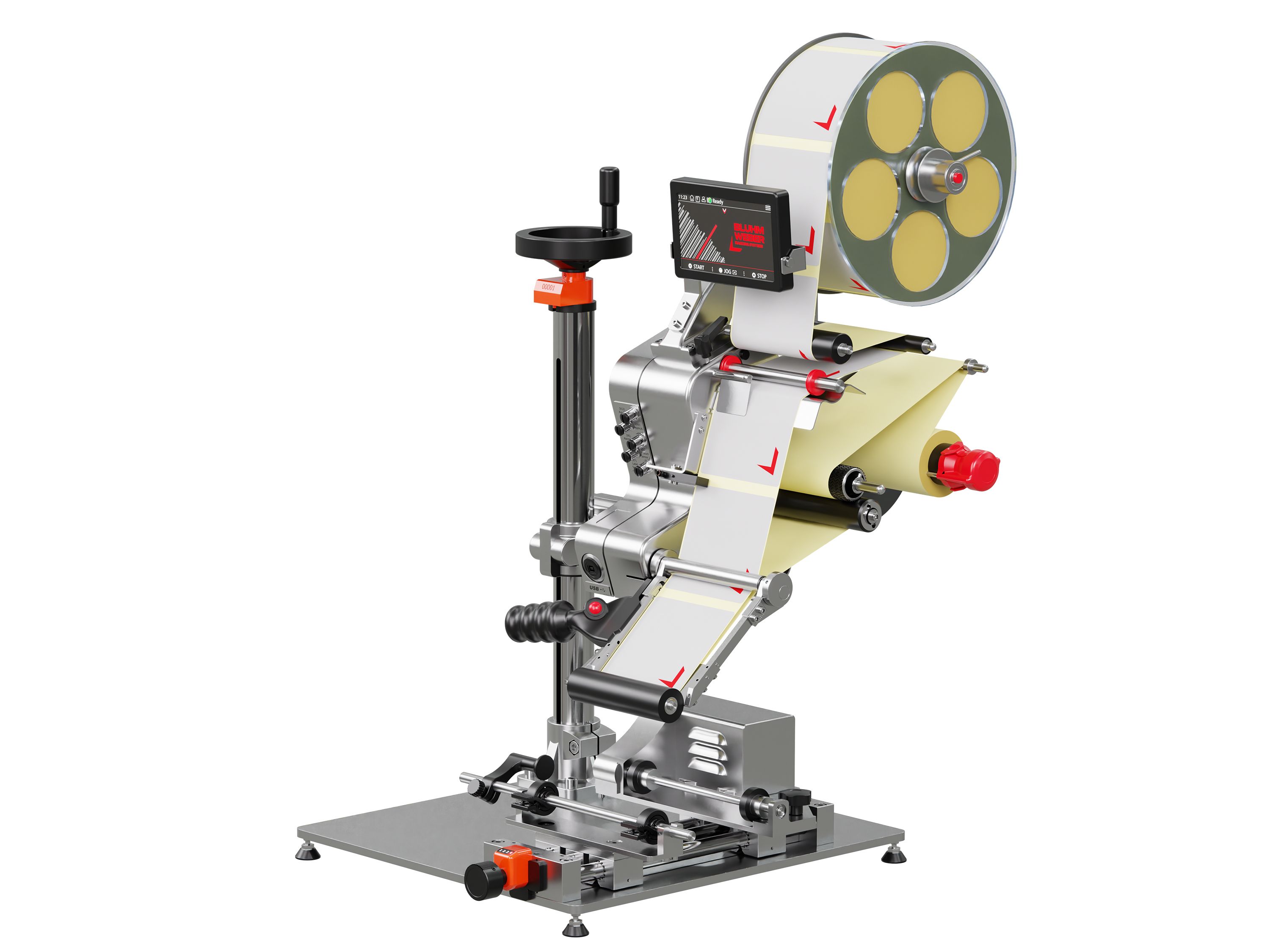

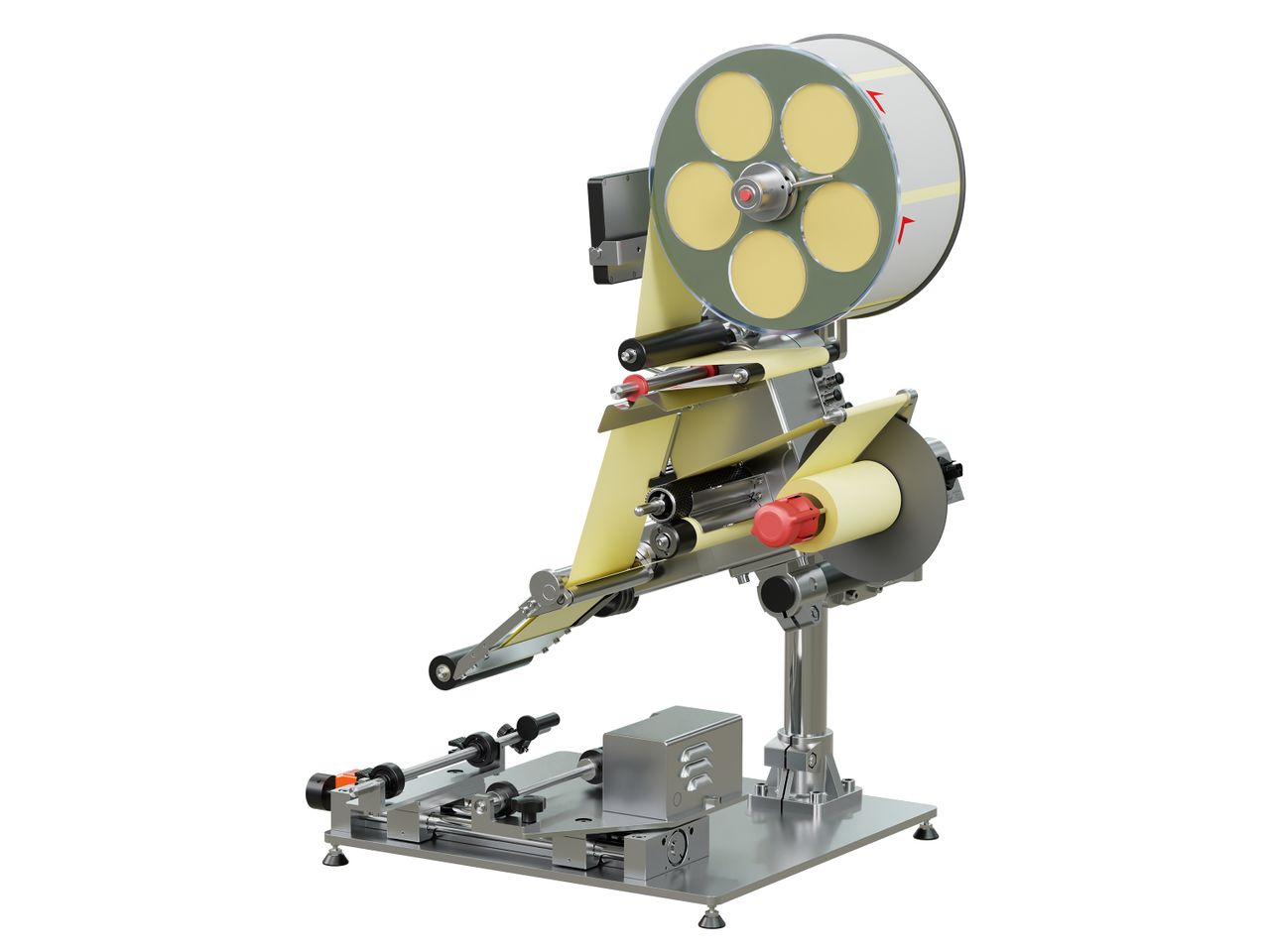

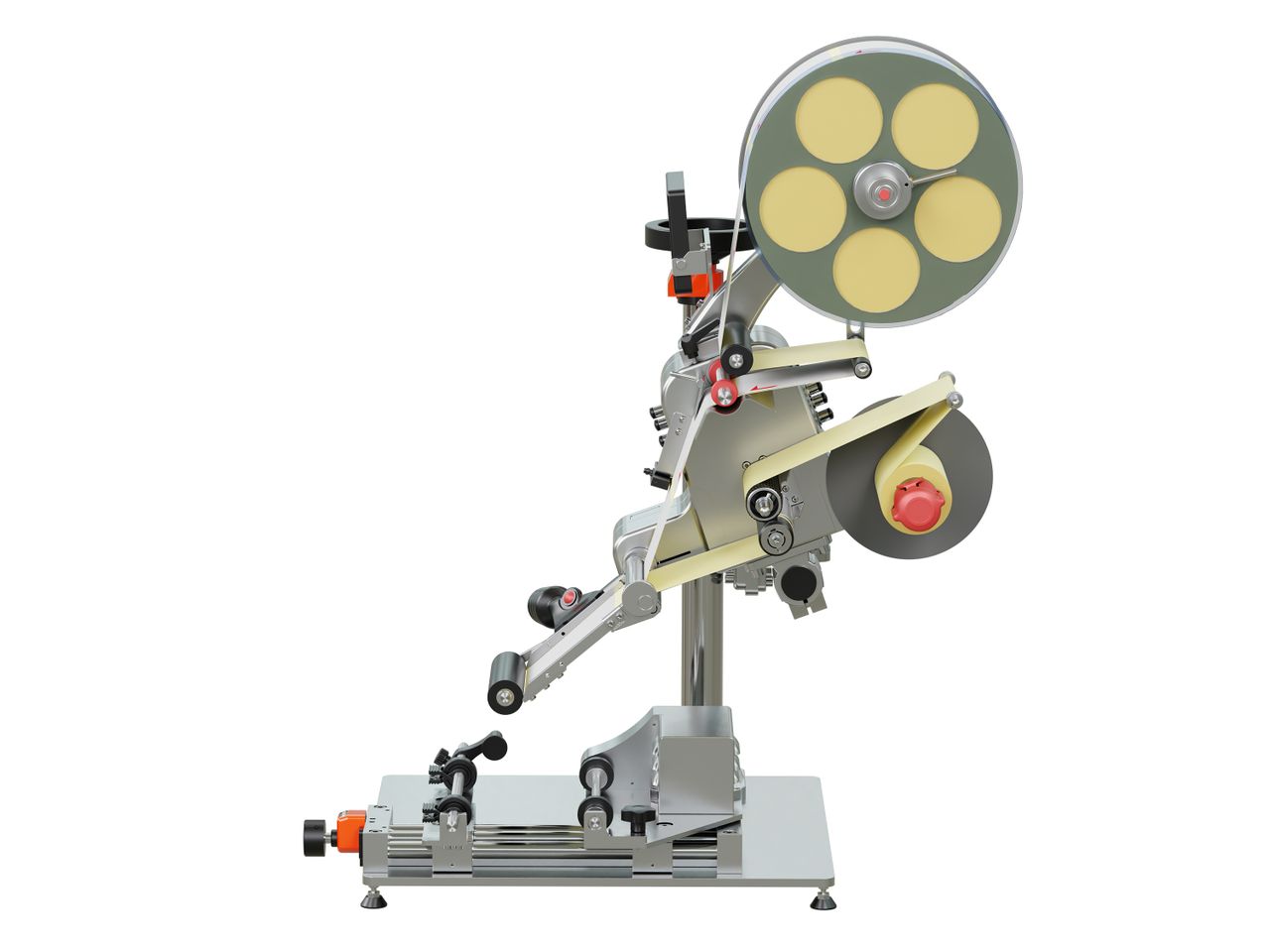

Semi-automatic labeling system for cylindrical, horizontal products

  • Labeling of horizontal products on the lateral surface
  • Up to 2 labels per product - without alignment
  • Compact design
  • Expandable with printing technologies for variable data
  • Two label width variants: up to 150 or 200 mm
  • Labels up to 30 products/min - depending on the operator

Developed for easy operation and system integration

The Geset 141 semi-automatic labeling system has been specially developed for maximum user-friendliness. The system labels cylindrical products all around the lateral surface and can be adjusted to different product sizes. The product is manually inserted into the roller system by the user and operated using a lever and foot switch. Labeling is carried out by an Alpha Compact label applicator. Operation is particularly simple and intuitive - ideal even for less trained personnel. Short set-up times for batch changes increase output.

Applications

Geset 141 labeling system Label on wine bottle
Geset 141 labeling system Label on honey jar
Labeling system Geset 221, 141 label on dietary supplements
Geset 141 labeling system Label on jam jar
Labeling system Geset 221, 141 label on cough syrup
Geset 141 labeling system Label on soup jar

Special features

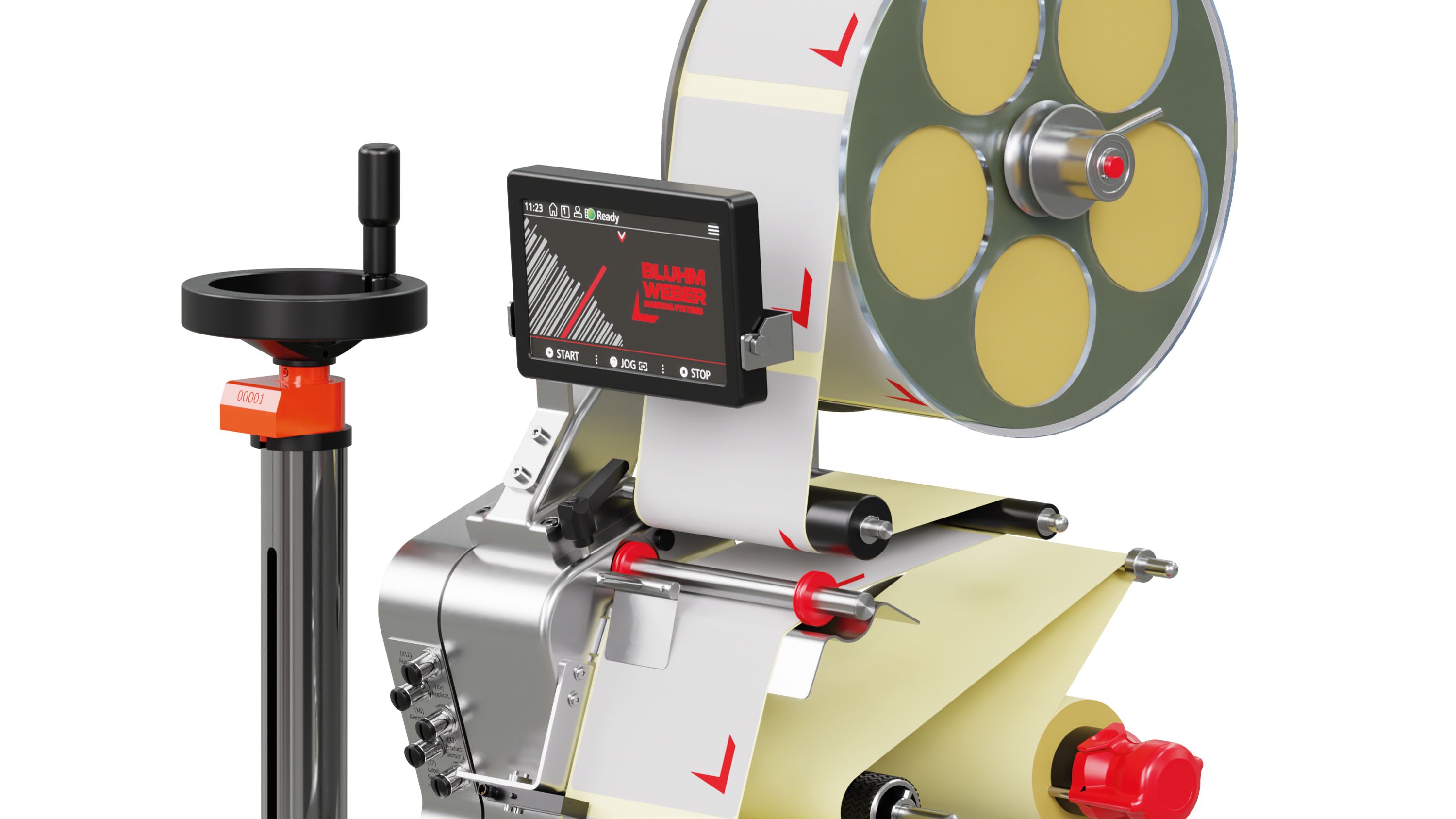

Geset 141 detail view – label width

Ideal for cylindrical packaging with small quantities

The system labels cylindrical products such as bottles or jars. It is suitable for smaller runs and is used by small distilleries, distilleries, delicatessen producers and manufacturers as well as cheese and dairy farms. There are different variants to choose from: two label widths (up to 150 mm and up to 200 mm) and two label detection types (standard and transparent).

Label printed with Markoprint X1JET HP Standard inkjet printer

Optionally expandable with printing technologies

If variable data such as best-before date or batch number is to be printed on the labels before application, the system can easily be expanded with an inkjet printer. This allows you to add additional coding to your high-quality labels in a highly efficient, legible and precise manner during labeling. We would be happy to advise you on the right device for your needs.

Geset 141 detail view – pressure rollers

Flexible pusher rollers

Segmented pusher rollers enable thorough, precise and gentle processing of packaging with protruding edges. They distribute pressure evenly and adapt to the contours of your products to prevent bubbles or creases. This helps to increase process stability and achieve perfect labeling results.

Technical specifications
Technical values
Labeling system function
Wrap-around
Label position
Circumference cylindrical product, Multiple cylindrical product
Positioning accuracy
1 mm
Equipment
Product transport (standard)
Manual workstation
Product management
No
Optional special equipment
X1 coder
HMI
HMI version
Touch display
Physical aspects
Dimensions system
965 mm x 800 mm x 582 mm
Weight
65 kg
Approvals
CE
Rel. humidity non-condensing
10 - 90 %
Ambient temperature
5 - 40°C
Connections
Supply voltage
230 - 230 V
Frequency
50 - 50 Hz
Compressed air connection
6 bar
Interfaces
USB

Downloads

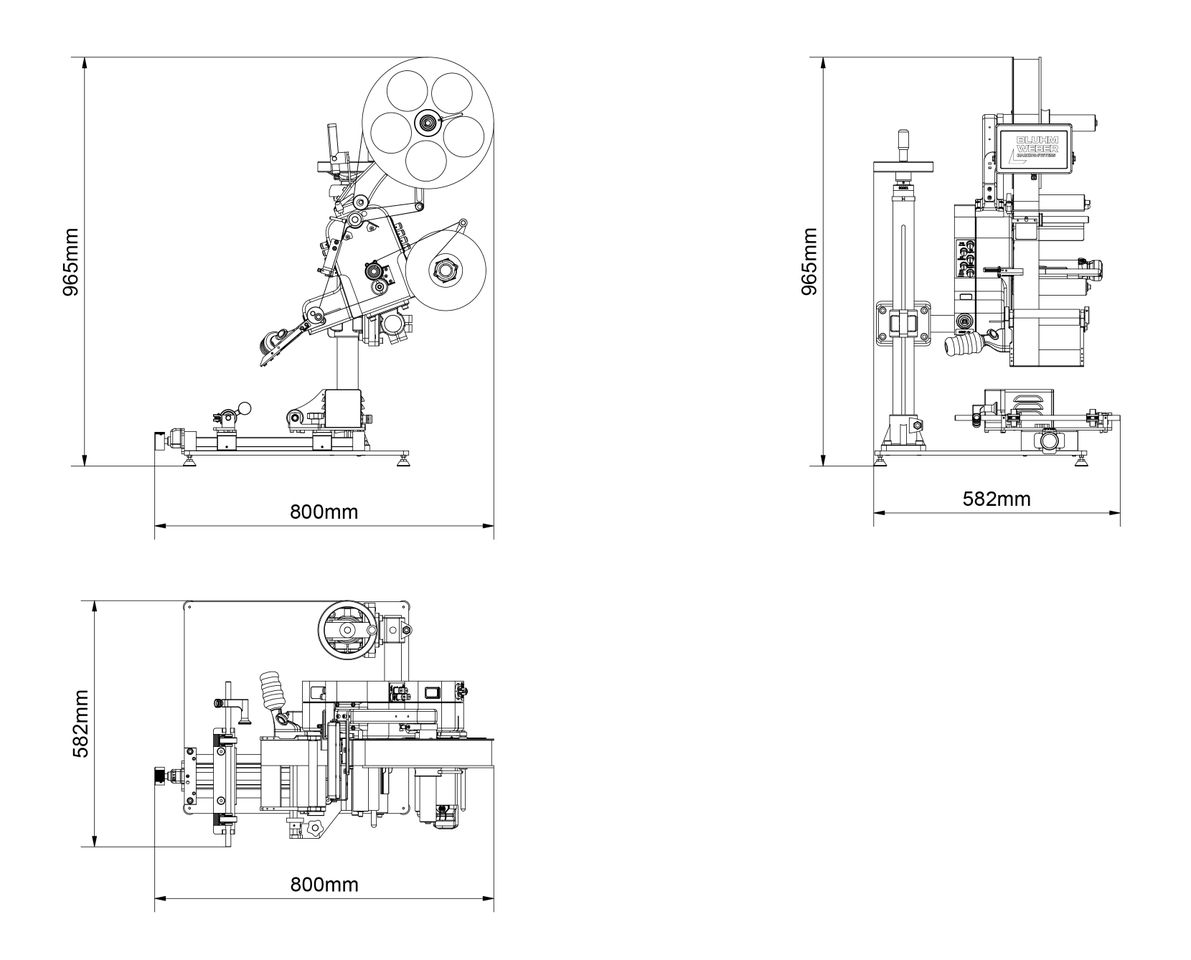

Technical Drawing Geset 141 (705.6 kB)
