Label print engine

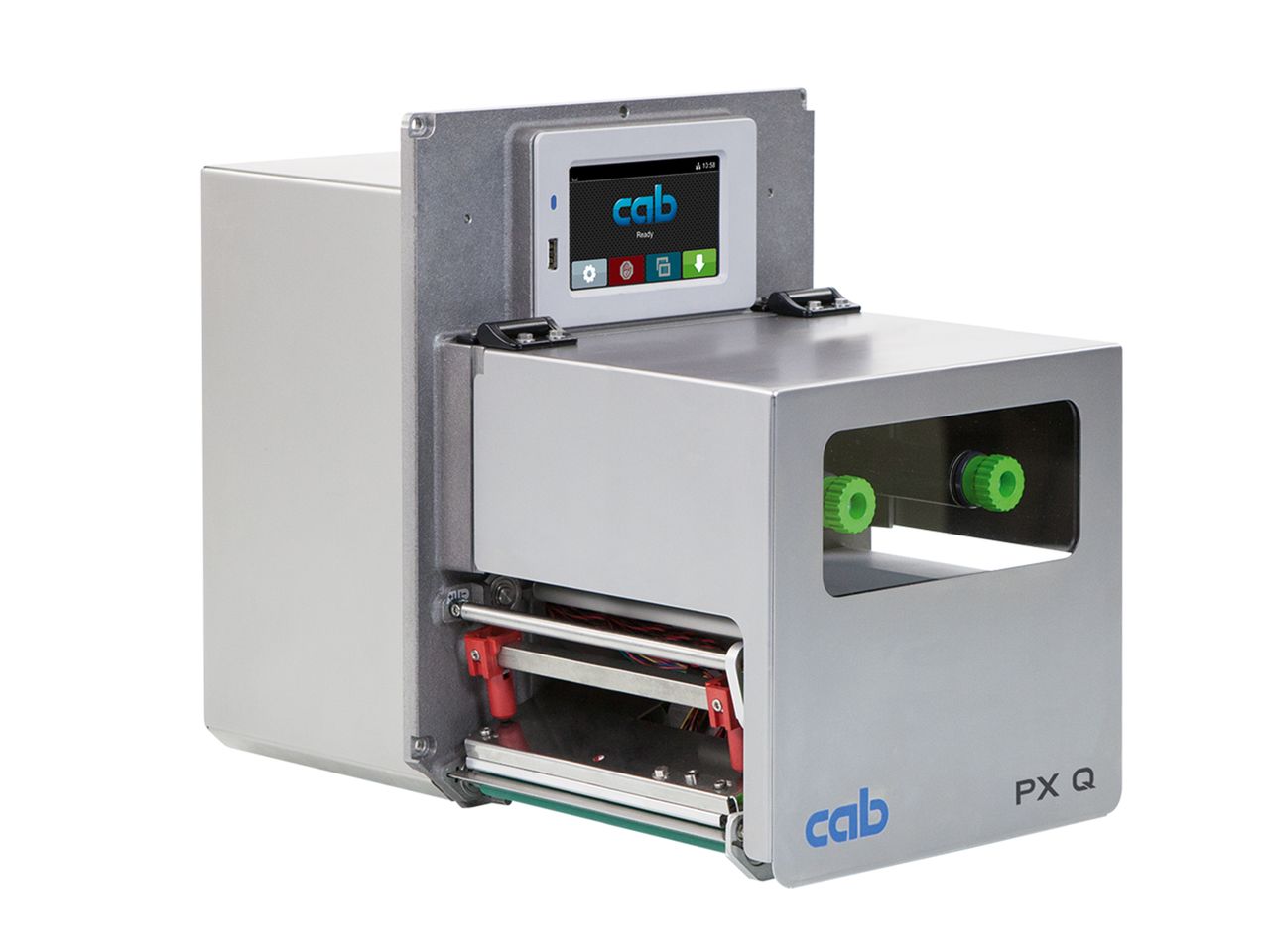

CAB PX Q6

High-precision print module for automated labeling in industry and logistics

High-precision printing up to 300 dpi
High print speed up to 250 mm/s
6" print module - print width up to 168 mm
Robust cast aluminium construction
Simple integration into systems
Compatible with competitor models

The CAB PX Q print module was specially developed for the fully automatic printing and labeling process in industrial applications. It is characterised by perfect functionality, high reliability and convenient operation, which minimises maintenance times and downtimes. Thanks to its torsion-resistant cast aluminium construction with food-safe coating and stainless steel cladding, it provides a robust base for the assembly of all push mechanism components. The PX Q can be integrated in any installation position and handles even complex labeling tasks with ease. The devices are screw-compatible with competitor models, which facilitates replacement and integration. Available in different versions, the PX Q 6 print module offers print resolutions from 203 to 300 dpi, print speeds of up to 250 mm/s and print widths of up to 168 mm, making it ideal for applications such as Odette and UCC labels.

The CAB PX Q 6 print module offers razor-sharp print quality with resolutions from 203 to 300 dpi and supports wide labels up to 168 mm. Even large barcodes, graphics and text fields are printed clearly and precisely. This makes it ideal for applications in industry and logistics where wide labels are required for pallets, shipping or components.

The torsion-resistant cast aluminium construction with stainless steel cladding makes the CAB PX Q 6 particularly robust. It can withstand even harsh industrial conditions and ensures reliable continuous use. The high-quality workmanship minimises maintenance and downtime, making the print module perfect for 24/7 operation.

The PX Q 6 is screw-compatible with competitor models, making it easy to retrofit. Thanks to flexible mounting options, it can be operated in any installation position. Standardised interfaces enable a smooth connection to existing labeling systems and automation solutions.

With a speed of up to 250 mm/s, the CAB PX Q 6 ensures fast and efficient labeling - even with large-format labels. This saves valuable time in production and logistics processes and ensures a smooth workflow. Even with high print volumes, the quality remains consistently high, ideal for industrial applications with large labels.

Technical specifications

Technical values

Print width

168 mm

Print speed up to

250 mm/sec

Printhead resolution

203 dpi, 305 dpi

Printing process

Thermal transfer, Thermal direct

Label width

50 - 174 mm

Print media

Material width max (labels and liner)

180 mm

Material width min (labels and liner)

50 mm

Maximum material thickness

0.76 mm

Ribbon

Width

50 - 170 mm

Inner core diameter

25 mm

Maximum length

600 linear meters

Winding

Inside (standard) Outside (standard)

Features

Display

4.3" colour TFT

Printhead technology

Flathead

Emulations

ZPL

Programming language

J-Script

ROM / flash memory

50 MB

Flash memory expansion as an option

–

SD memory card slot

–

PDF direct printing

–

Physical aspects

Dimensions system

300 mm x 245 mm x 393 mm

Weight

12 kg

Authorisations

CE

Rel. humidity non-condensing

10 - 85 %

Ambient temperature

5 - 40°C

Frequency

50 - 60 Hz
