Alpha HSM

Extremely flexible high-speed labeling system

Dispensing cycle rate up to 2,000 labels/min
Label size min. 10 x 10 mm, max. 320 x 2,000 mm
Can be flexibly integrated into any production line
Ingress protection IP65 for dusty & humid environments
Quick changeover for changing products
Modularly expandable and individually configurable

The Alpha HSM label dispenser stands out with maximum flexibility, performance, and robustness. Thanks to its compact design, it can be easily integrated even into confined production environments – ideal for industries with demanding conditions such as food, chemical, or building materials.

The modular design allows for individual configuration: with numerous different modules, the Alpha HSM adapts precisely to your requirements. Large label formats, high dispensing speeds, and IP65 protection make the system a true all-rounder in labeling – even under harsh conditions. A web-based control system, storable labeling parameters, and automatic self-adjustment ensure easy and safe operation. With the zero-downtime function and the option to expand into a print & apply system, the Alpha HSM is prepared for all requirements.

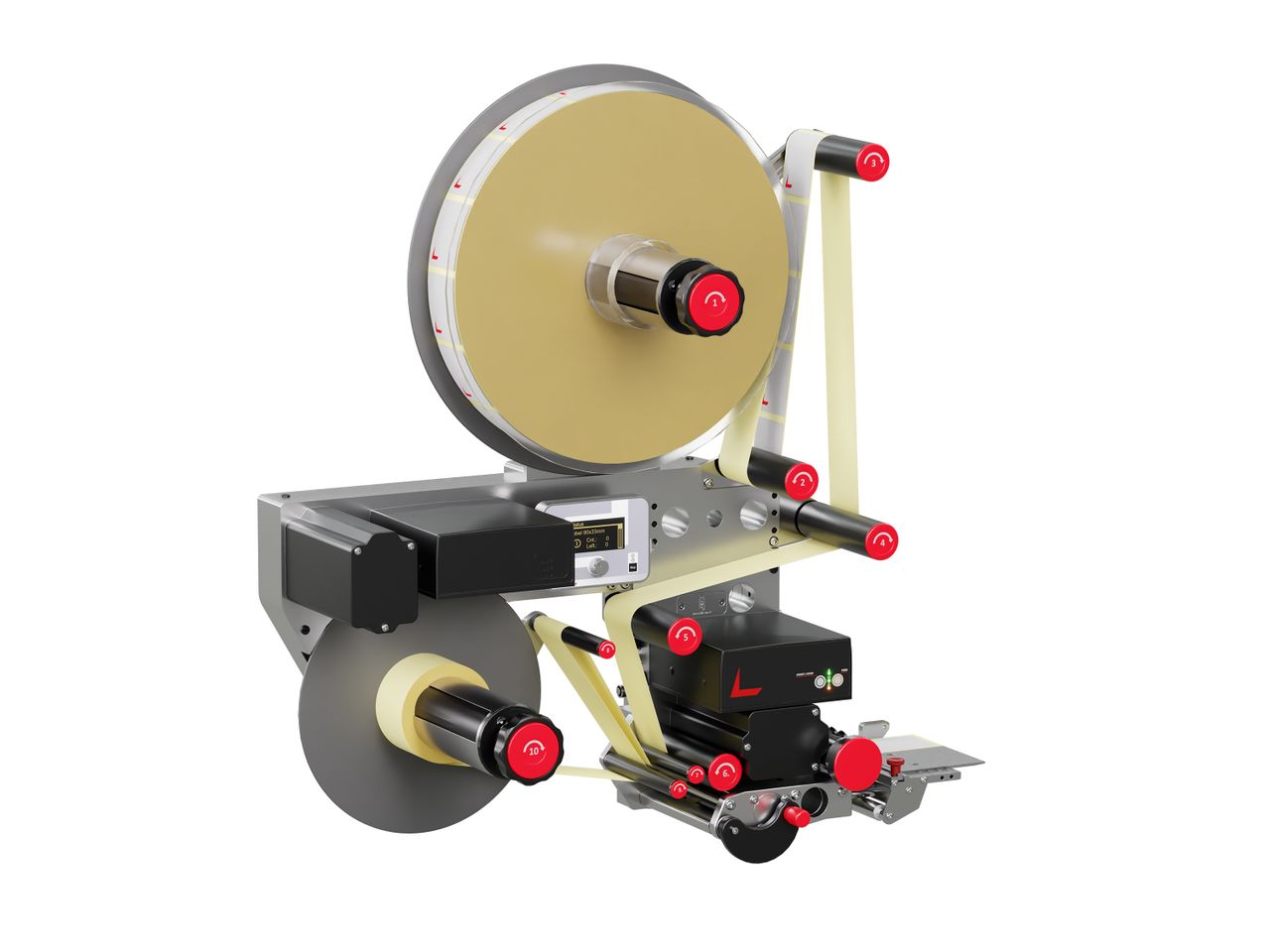

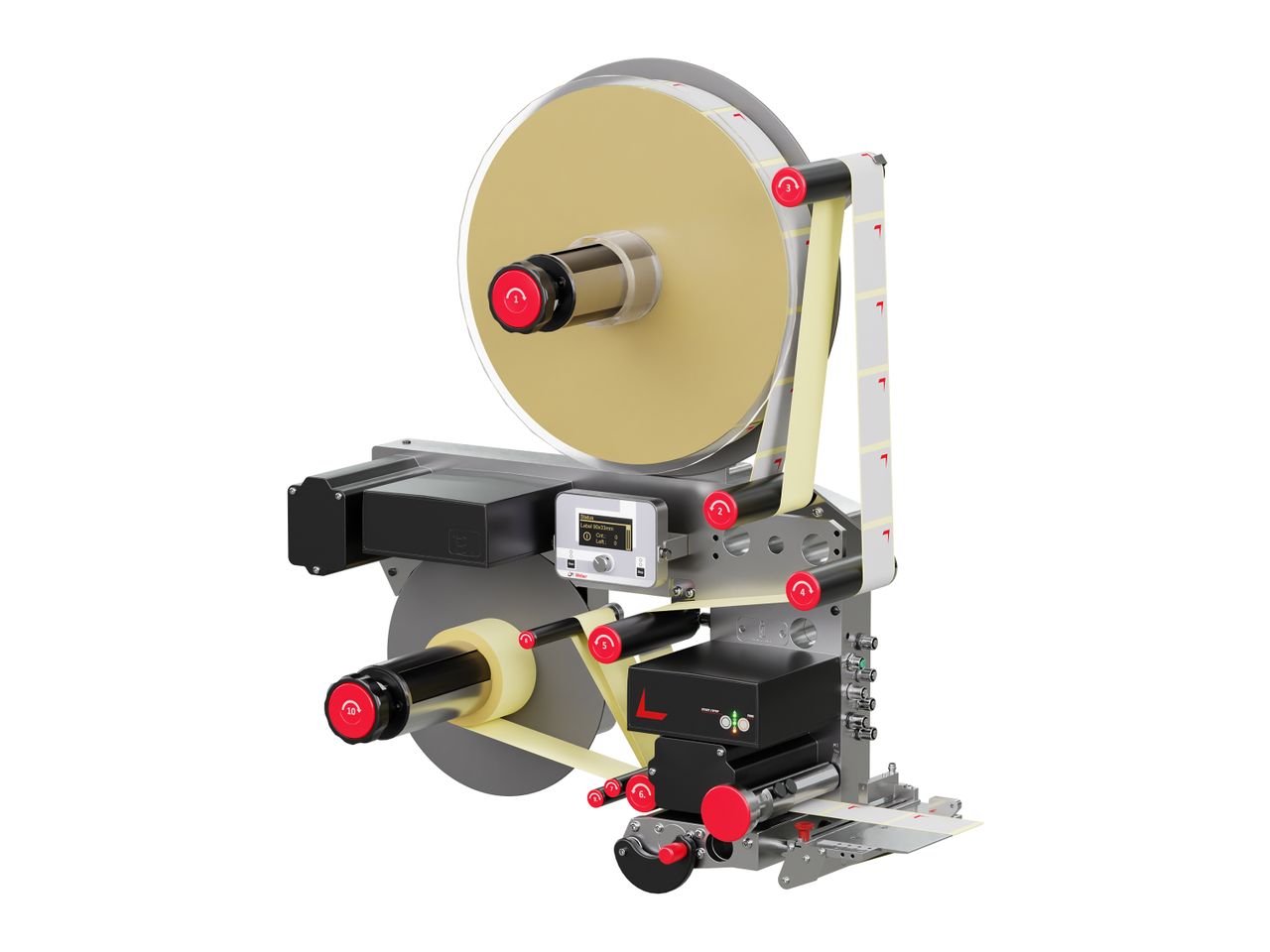

Alpha HSM label applicator automatically labels carton packaging

Geset 217 labeling system Double-sided label on food packaging

Geset 217 labeling system Label double-sided on cosmetics packaging

Geset 213 labeling system Label on one side on glass cleaner

Geset 211 labeling system Label on foil packaging for foodstuffs

Hazardous substance labels on plastic bags

Thanks to its modular design, the label dispenser can be perfectly adapted to individual requirements. A wide range of optional modules enables versatile configurations – from label widths of up to 320 mm to different dispensing units and variable drive configurations. The result is a solution precisely tailored to your process, which can be expanded at any time if needed.

With IP65 protection, the label dispenser is reliably protected against dust and splashing water. This makes it ideal for use in harsh production or logistics environments. A separate enclosure is completely unnecessary, which not only saves space but also simplifies integration into existing systems. At the same time, maintenance is made easier since all components remain freely accessible, reducing downtime.

With two intelligently connected Alpha HSM systems, continuous, interruption-free operation is guaranteed at all times. While one system is in use, the second is already on standby and automatically takes over as soon as a roll change is required. This effectively prevents production stoppages, which not only increases efficiency but also significantly improves the reliability and availability of your equipment.

Whether for product changeovers or the integration of additional printing technologies, the Alpha HSM label dispenser can be adapted to new requirements in no time. Thanks to its flexible design, it can be easily combined with thermal transfer or inkjet systems, enabling direct printing of labels during the dispensing process. This not only increases efficiency but also enhances the versatility of your production line, ensuring maximum future readiness.
