Automatic label applicator

Alpha Compact

Compact label applicator for applying pre-printed labels

Dispensing cycle rate up to 600 labels/min
Label size min. 10 x 20 mm, max. 150 x 300 mm
Integrated controller saves space
Automatic detection of missing labels (skip function)
Quick change of the label size

The Alpha Compact is a powerful label dispenser for precise application of pre-printed labels. It is ideally suited for a wide range of products and packaging – whether in industry, logistics, or retail. Thanks to the integrated controller, the system is particularly space-saving, while labeling parameters, sensor calibration, and operating functions can easily be set via USB or an optional control panel.

The modular design allows for individual adaptation to production lines, with various applicators available. With cycle rates of up to 600 labels per minute and high dispensing accuracy, the Alpha Compact ensures efficient and reliable labeling – even in continuous operation. Robust mechanics, easy operation, and versatile interfaces make it the perfect choice for demanding applications.

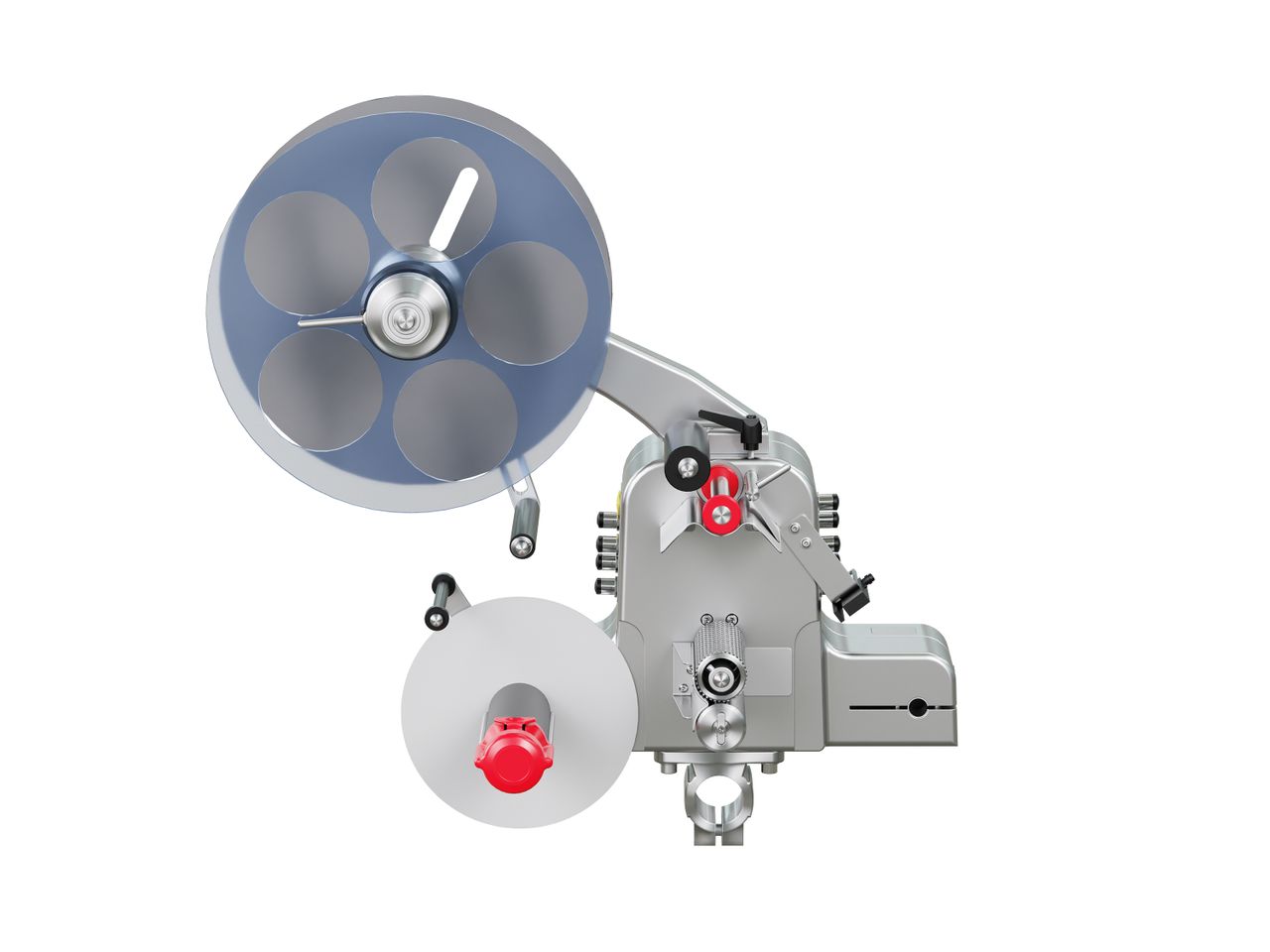

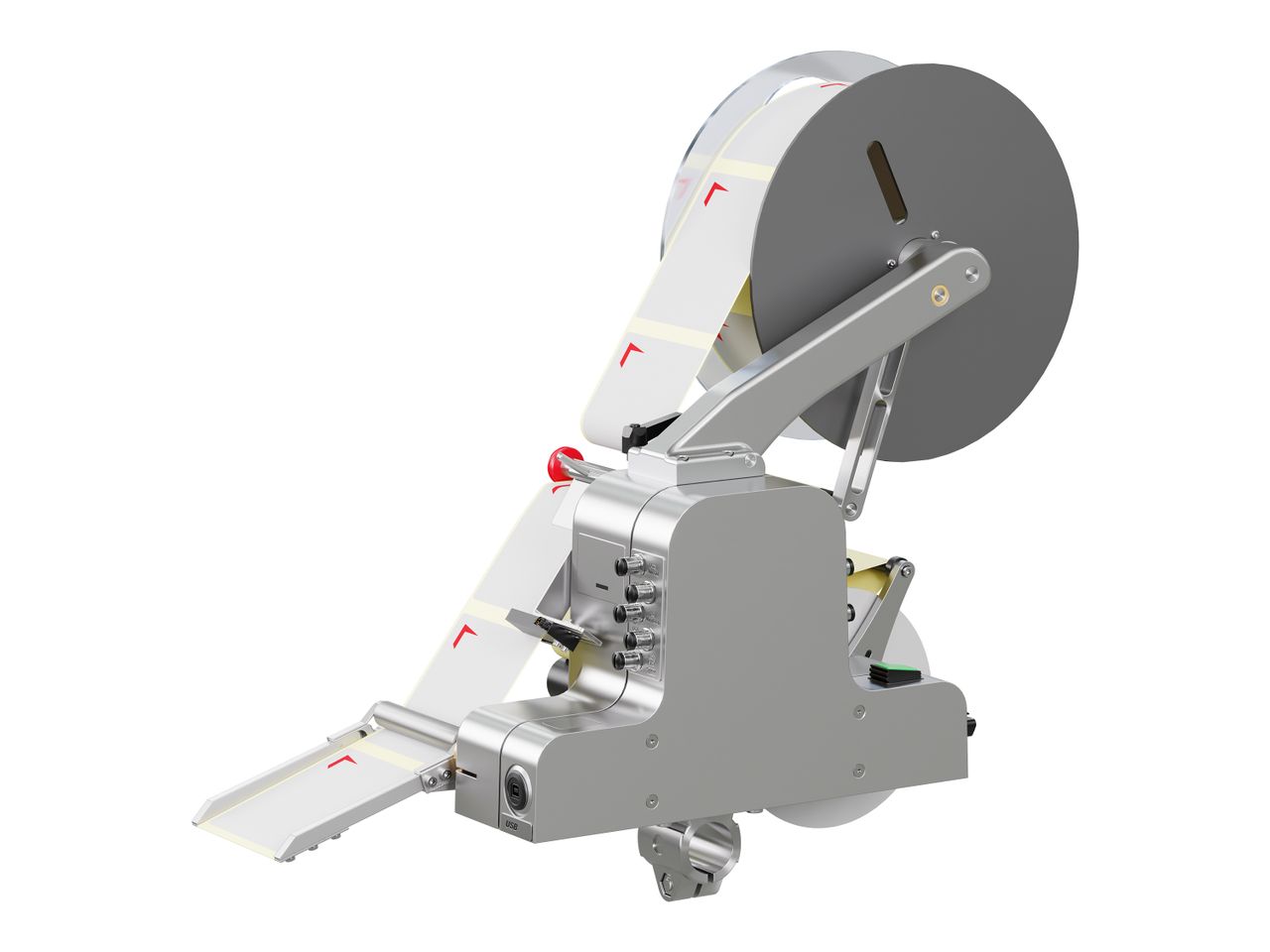

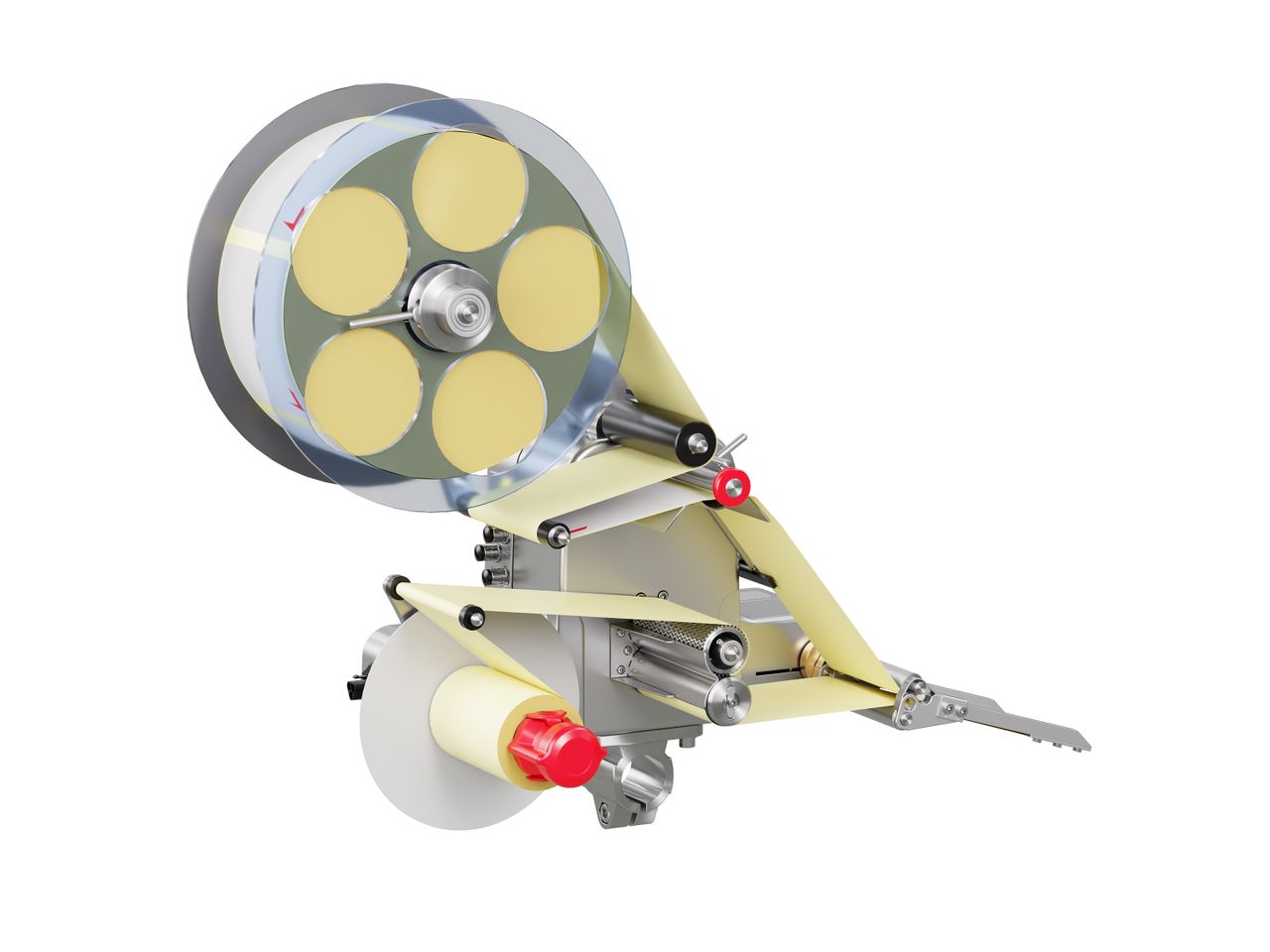

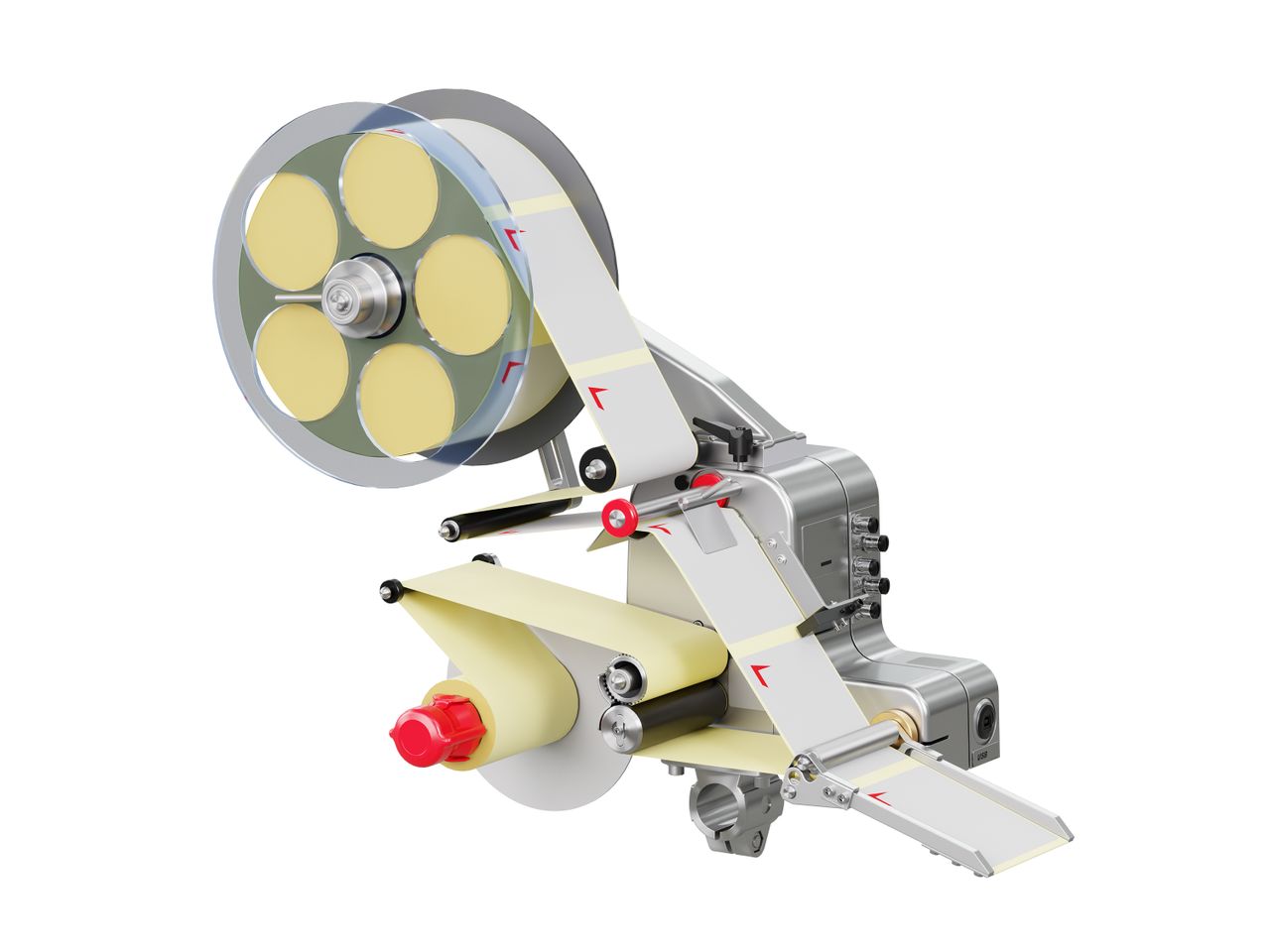

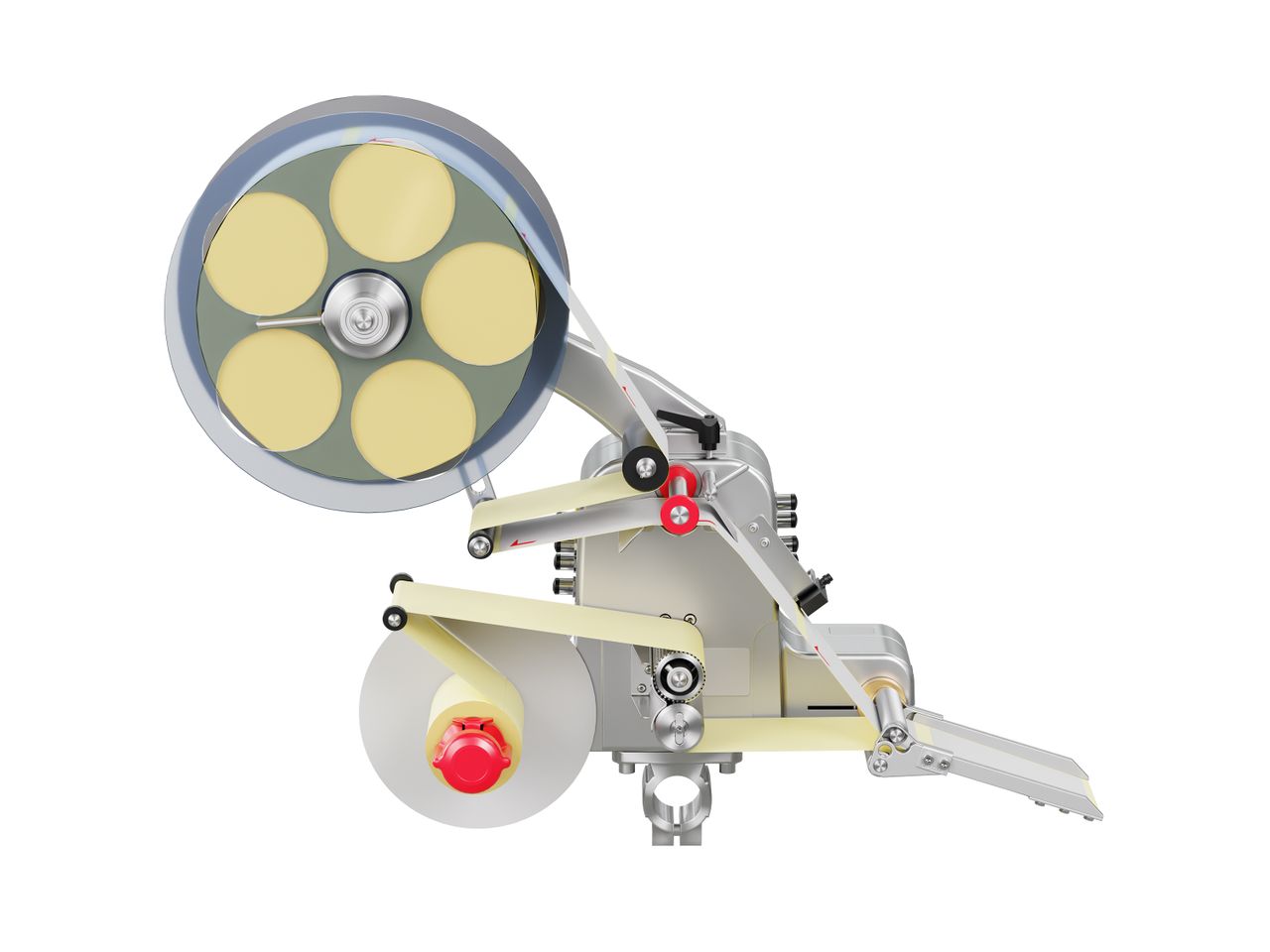

Alpha Compact applies pre-printed labels

Geset 211 labeling system Label on foil packaging for foodstuffs

Geset 213 labeling system Label on one side of glass bottle with room fragrance

Geset 211 labeling system Label on toothbrush packaging

Alpha Compact labeling on food packaging

Hazardous substance labels on plastic bags

In the Alpha Compact, the entire control electronics are space-savingly integrated into the compact housing. This eliminates the need for external control units, reducing wiring effort and making integration into existing production lines easier. At the same time, connection options are available for an optional HMI display as well as an I/O interface. This allows the system to be operated intuitively, commissioned quickly, and run reliably in everyday use.

The configuration of the Alpha Compact is designed to be particularly user-friendly. Via the USB connection, all labeling settings – such as start and stop functions, single-label feed, speed adjustment, or sensor calibration – can be transferred quickly and easily. Parameters can conveniently be stored or loaded on a PC, making it ideal for frequent product changeovers, centralized control, or status reporting during operation.

The Alpha Compact impresses with its dispensing accuracy, ensured by an intelligent combination of automatic calibration and advanced label detection. This guarantees reliably precise results even at high cycle rates. These features make the system the ideal solution for applications where maximum accuracy and consistent quality are essential.

If required, the label dispenser can easily be expanded with additional modules. A particularly practical option is the integration of an inkjet printer to apply variable data such as batch numbers, expiration dates, or barcodes directly during the labeling process. This creates customized complete solutions that offer maximum flexibility and can be ideally adapted to growing production requirements.
